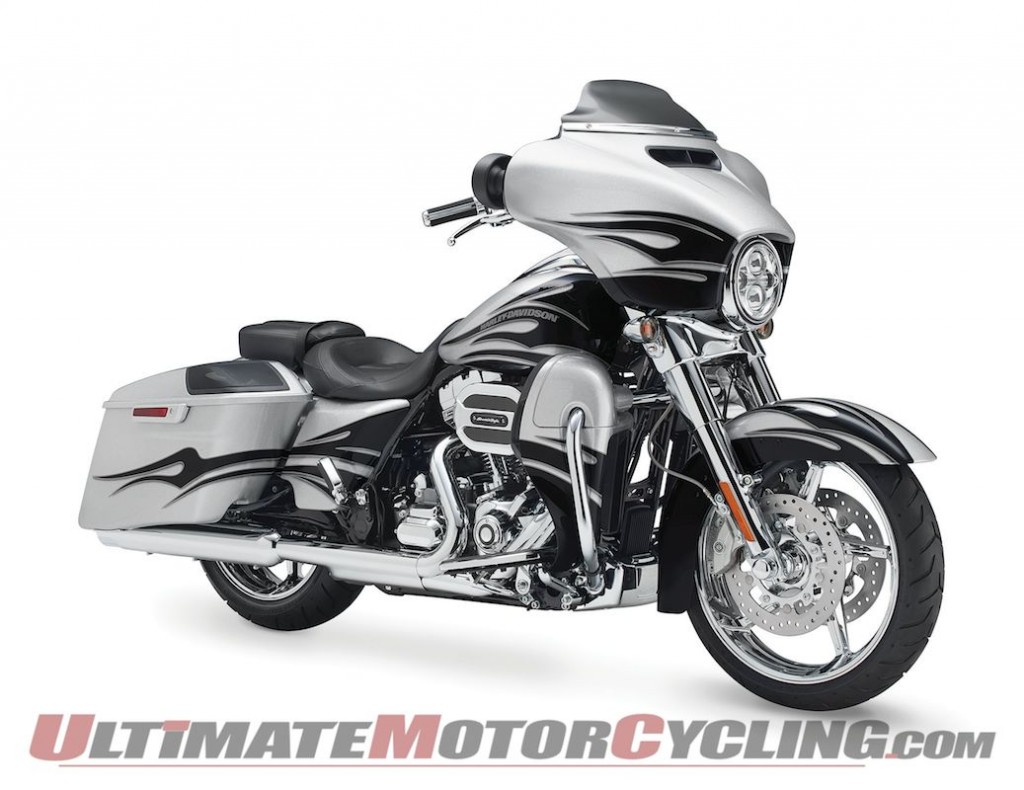

2015 Harley-Davidson CVO Street Glide Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2015 Harley-Davidson CVO Street Glide.

Basic Specs

Year2015
MakeHarley-Davidson
ModelHarley-Davidson CVO Street Glide
CostUS$ 36349. Euro 38035. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1801.00 ccm (109.90 cubic inches)
TypeTwin-Cooled™ Twin Cam 110™
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke101.6 x 111.3 mm (4.0 x 4.4 inches)
Valves/Cylinder
FuelingInjection. ESPFI
Ignition
ExhaustChrome dual exhaust with 4 inch touring mufflers and touring muffler shields
LubricationDry sump
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive

Performance

Horespower96.55 HP (70.5 kW)
Torque156.00 Nm (15.9 kgf-m or 115.1 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption5.70 litres/100 km (17.5 km/l or 41.27 mpg)
Fuel Capacity22.71 litres (6.00 gallons)
Emissions132.2 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake26.0°
Trail170 mm (6.7 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height690 mm (27.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,450 mm (96.5 inches)
Total Width
Ground Clearance120 mm (4.7 inches)
Wheelbase1,625 mm (64.0 inches)
Dry Weight380.0 kg (837.8 pounds)
Wet Weight395.0 kg (870.8 pounds)

Wheels & Brakes

Front Tire/Tyre130/70-B19
Rear Tire/Tyre180/55-BW18
Front BrakesDouble disc. ABS. 4-piston
Front Brake Diameter
Rear BrakesSingle disc. ABS. 2-piston
Rear Brake Diameter
WheelsMirror Chrome Aggressor Custom Wheel

Comments

It appears you're interested in specifications for the Harley-Davidson CVO Street Glide. This Touring model is powered by a Twin-Cooled™ Twin Cam 110™ V2, four-stroke engine with 1801.00 ccm (109.90 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Injection. ESPFI allowing this machine to produce its 96.55 HP (70.5 kW) horsepower and 156.00 Nm (15.9 kgf-m or 115.1 ft.lbs) torque. According to our records engine heat of the Harley-Davidson CVO Street Glide is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 130/70-B19 and the rear is 180/55-BW18 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. 4-piston front brakes and Single disc. ABS. 2-piston rear brakes. The Harley-Davidson CVO Street Glide was launched in 2015, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Windshield. Cruse control. Alarm.
