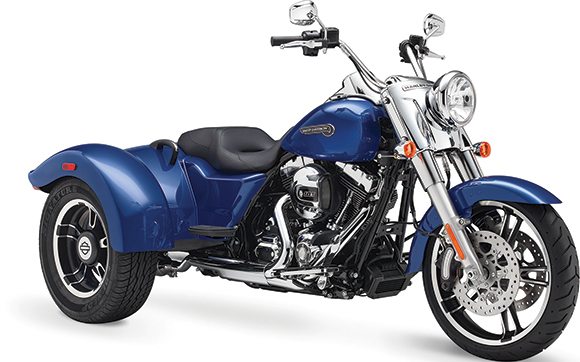

2015 Harley-Davidson Freewheeler Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2015 Harley-Davidson Freewheeler.

Basic Specs

Year2015
MakeHarley-Davidson
ModelHarley-Davidson Freewheeler
CostUS$ 24999. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1689.61 ccm (103.10 cubic inches)
TypeAir-cooled, High Output Twin Cam 103™ with integrated oil cooler
DetailsV2, four-stroke
Max RPM
Compression9.7:1
Bore/Stroke98.3 x 111.1 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustNew mufflers designed to fit within the new shorter Freewheeler body. The slash down style chrome finish mufflers are ~3” shorter than current FL mufflers
Lubrication
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive

Performance

Horespower85.83 HP (62.6 kW)
Torque141.97 Nm (14.5 kgf-m or 104.7 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption6.03 litres/100 km (16.6 km/l or 39.01 mpg)
Fuel Capacity22.71 litres (6.00 gallons)
Emissions139.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake26.0°
Trail101 mm (4.0 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height683 mm (26.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,619 mm (103.1 inches)
Total Width
Ground Clearance
Wheelbase1,676 mm (66.0 inches)
Dry Weight
Wet Weight0.5 kg (1.1 pounds)

Wheels & Brakes

Front Tire/Tyre130/60-MT19
Rear Tire/Tyre205/65-P15
Front BrakesDouble disc. 6 piston.
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
WheelsEnforcer Cast Aluminum

Comments

It appears you're interested in specifications for the Harley-Davidson Freewheeler. This Custom / cruiser model is powered by a Air-cooled, High Output Twin Cam 103™ with integrated oil cooler V2, four-stroke engine with 1689.61 ccm (103.10 cubic inches) of actual displacement before 9.7:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection (ESPFI) allowing this machine to produce its 85.83 HP (62.6 kW) horsepower and 141.97 Nm (14.5 kgf-m or 104.7 ft.lbs) torque. According to our records engine heat of the Harley-Davidson Freewheeler is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 130/60-MT19 and the rear is 205/65-P15 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. 6 piston. front brakes and Single disc rear brakes. The Harley-Davidson Freewheeler was launched in 2015, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Trike. Cruise control.
