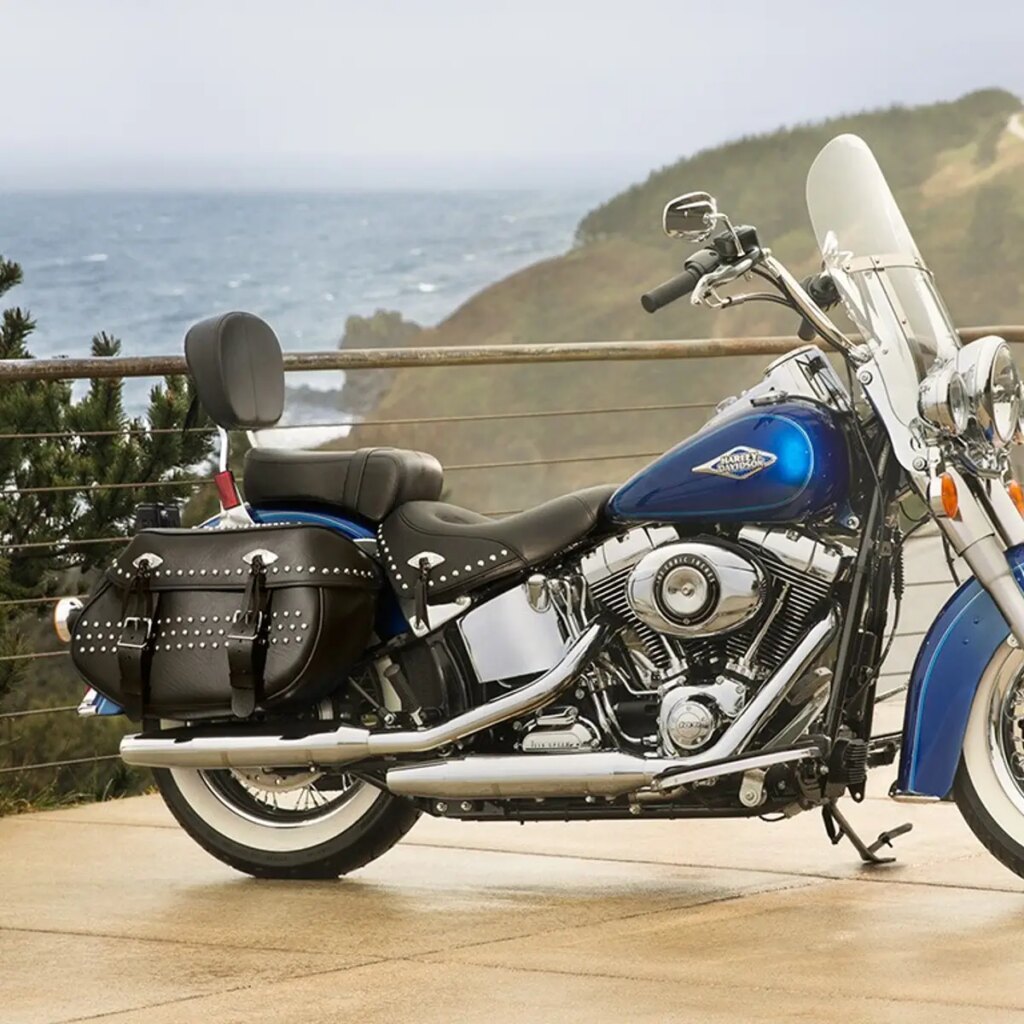

These are the known mechanical and performance specifications for your 2015 Harley-Davidson Heritage Softail Classic.
Basic Specs
Year2015
MakeHarley-Davidson
ModelHarley-Davidson Heritage Softail Classic
TypeTouring
CostUS$ 18349. Euro 21995. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1690.00 ccm (103.12 cubic inches)
TypeAir-cooled, Twin Cam 103B™
DetailsV2, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke98.4 x 111.1 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome, staggered shorty exhaust with dual mufflers
Lubrication
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
Driveline
Performance
Horespower73.76 HP (53.8 kW)
Torque130.00 Nm (13.3 kgf-m or 95.9 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity18.93 litres (5.00 gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake31.0°
Trail147 mm (5.8 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height690 mm (27.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,405 mm (94.7 inches)
Total Width
Ground Clearance131 mm (5.2 inches)
Wheelbase1,638 mm (64.5 inches)
Dry Weight326.1 kg (719.0 pounds)
Wet Weight341.1 kg (752.0 pounds)
Wheels & Brakes
Front Tire/TyreMT90-B16
Rear Tire/Tyre150/80-B16
Front BrakesSingle disc. ABS. 4-piston
Front Brake Diameter
Rear BrakesSingle disc. 2-piston
Rear Brake Diameter
WheelsSteellaced, optional whitewall tires
Comments
Windshield
