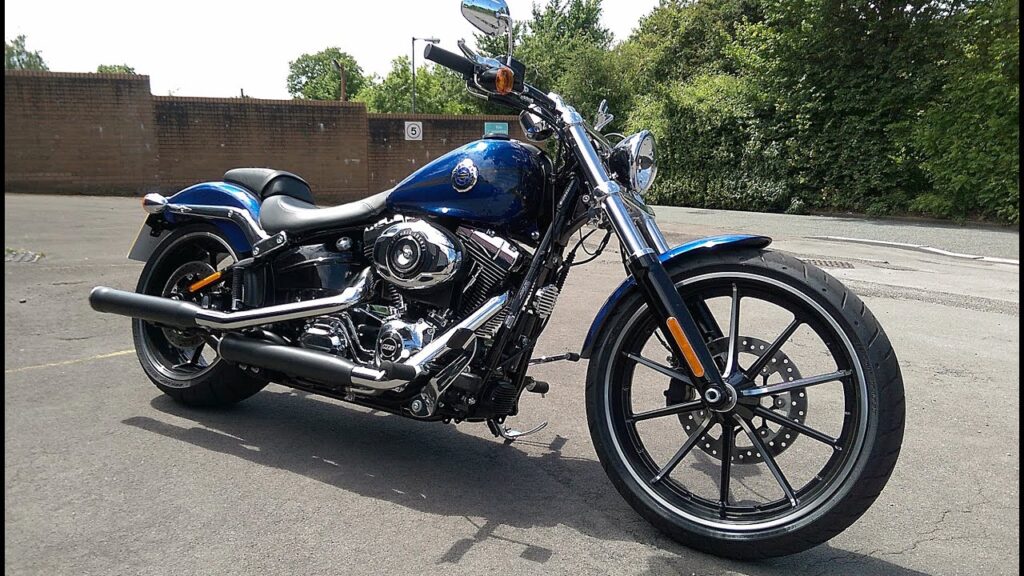

These are the known mechanical and performance specifications for your 2015 Harley-Davidson Softail Breakout.
Basic Specs
Year2015
MakeHarley-Davidson
ModelHarley-Davidson Softail Breakout
TypeCustom / cruiser
CostUS$ 18599. Euro 20995. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1690.00 ccm (103.12 cubic inches)
TypeAir-cooled, Twin Cam 103B™
DetailsV2, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke98.4 x 111.1 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustStaggered, straight cut chrome mufflers with Gloss Black muffler shields
Lubrication
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive
Performance
Horespower75.10 HP (54.8 kW)
Torque130.00 Nm (13.3 kgf-m or 95.9 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity18.93 litres (5.00 gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake35.0°
Trail145 mm (5.7 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height660 mm (26.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,449 mm (96.4 inches)
Total Width
Ground Clearance119 mm (4.7 inches)
Wheelbase1,710 mm (67.3 inches)
Dry Weight309.0 kg (681.2 pounds)
Wet Weight322.0 kg (709.9 pounds)
Wheels & Brakes
Front Tire/Tyre130/60-B21
Rear Tire/Tyre240/40-R18
Front BrakesSingle disc. ABS. 4-piston
Front Brake Diameter
Rear BrakesSingle disc. 2-piston
Rear Brake Diameter
WheelsBlack, 10-Spoke Cast Aluminum
