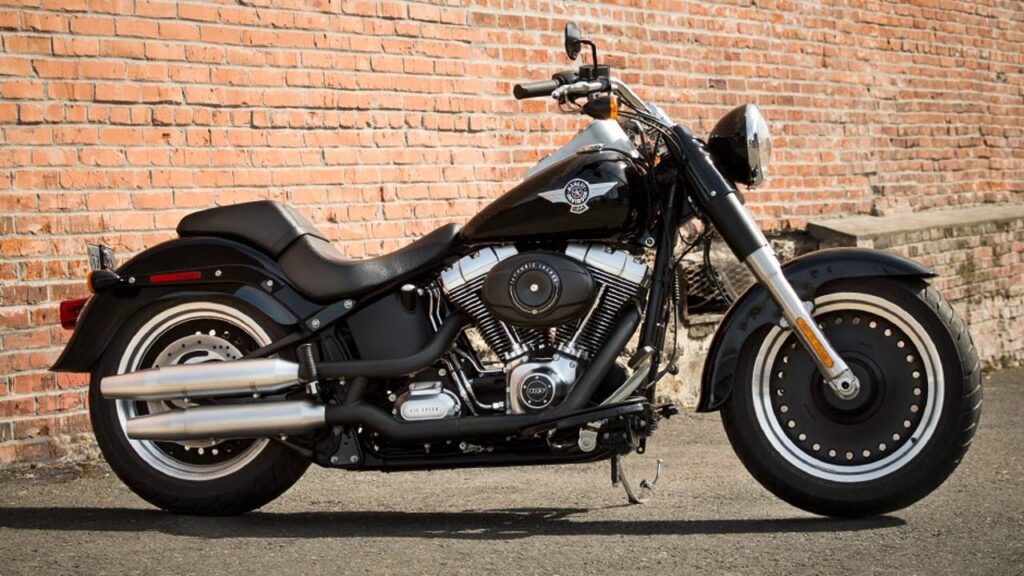

These are the known mechanical and performance specifications for your 2015 Harley-Davidson Softail Fat Boy.
Basic Specs
Year2015
MakeHarley-Davidson
ModelHarley-Davidson Softail Fat Boy
TypeCustom / cruiser
CostUS$ 17699. Euro 20995. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1690.00 ccm (103.12 cubic inches)
TypeAir-cooled, Twin Cam 103B™
DetailsV2, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke98.4 x 111.3 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustChrome, over/under shotgun exhaust with dual mufflers
Lubrication
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelinePrimary chain, 34/46 ratio
Performance
Horespower77.78 HP (56.8 kW)
Torque132.00 Nm (13.5 kgf-m or 97.4 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity18.93 litres (5.00 gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake31.0°
Trail147 mm (5.8 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height635 mm (25.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,395 mm (94.3 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1,638 mm (64.5 inches)
Dry Weight313.0 kg (690.0 pounds)
Wet Weight330.2 kg (728.0 pounds)
Wheels & Brakes
Front Tire/Tyre140/75-R17
Rear Tire/Tyre200/55-R17
Front BrakesDouble disc. ABS. 4-piston.
Front Brake Diameter
Rear BrakesSingle disc. 2-piston.
Rear Brake Diameter
WheelsMirror Chrome Aluminum Bullet Hole Disc
