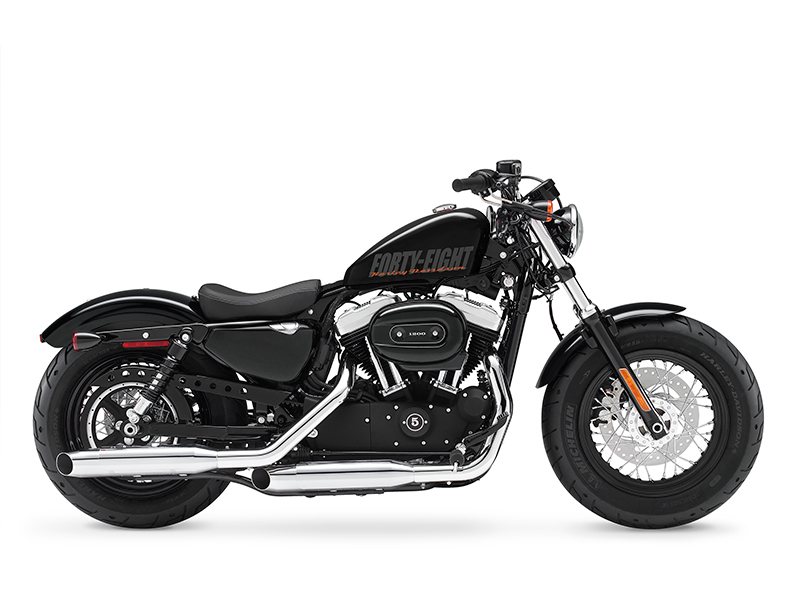

These are the known mechanical and performance specifications for your 2015 Harley-Davidson Sportster Forty-Eight Dark Custom.
Basic Specs
Year2015
MakeHarley-Davidson
ModelHarley-Davidson Sportster Forty-Eight Dark Custom
TypeCustom / cruiser
CostUS$ 10749. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1201.25 ccm (73.30 cubic inches)
TypeAir-cooled, Evolution®
DetailsV2, four-stroke
Max RPM
Compression9.7:1
Bore/Stroke88.9 x 96.8 mm (3.5 x 3.8 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome, staggered shorty exhaust with dual slash-cut mufflers
Lubrication
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveBelt
Clutch
DrivelineChain, 57/38 ratio primary drive
Performance
Horespower
Torque107.12 Nm (10.9 kgf-m or 79.0 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption4.90 litres/100 km (20.4 km/l or 48.00 mpg)
Fuel Capacity7.95 litres (2.10 gallons)
Emissions113.7 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake30.0°
Trail107 mm (4.2 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height710 mm (28.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,255 mm (88.8 inches)
Total Width
Ground Clearance100 mm (3.9 inches)
Wheelbase1,520 mm (59.8 inches)
Dry Weight250.8 kg (553.0 pounds)
Wet Weight259.9 kg (573.0 pounds)
Wheels & Brakes
Front Tire/Tyre130/90-B16
Rear Tire/Tyre150/80-B16
Front BrakesSingle disc. Optional ABS. Dual-piston.
Front Brake Diameter
Rear BrakesSingle disc. Optinal ABS. Dual-piston.
Rear Brake Diameter
WheelsBlack, Laced Steel
