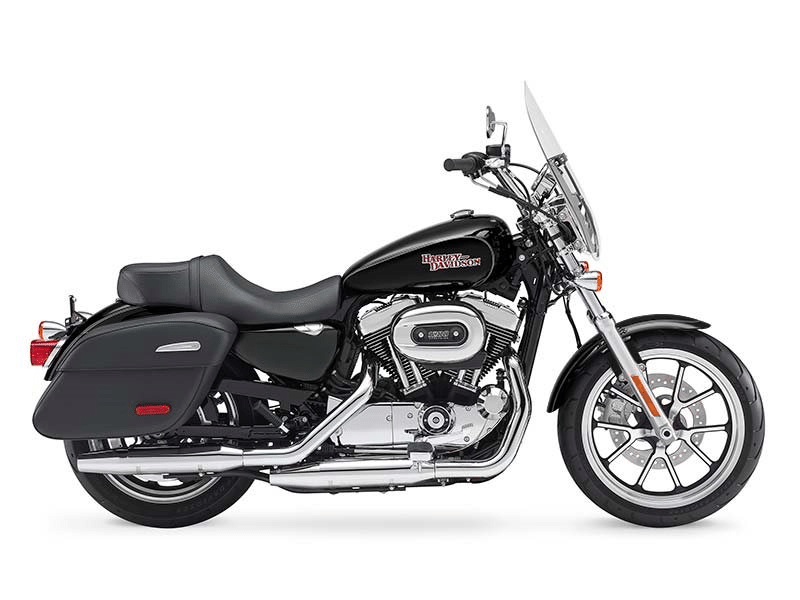

2015 Harley-Davidson Sportster SuperLow 1200T Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2015 Harley-Davidson Sportster SuperLow 1200T.

Basic Specs

Year2015
MakeHarley-Davidson
ModelHarley-Davidson Sportster SuperLow 1200T
CostUS$ 11799. Euro 12665. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1200.00 ccm (73.22 cubic inches)
TypeEvolution engine
DetailsV2, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke88.9 x 96.8 mm (3.5 x 3.8 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome, staggered, shorty exhaust with dual mufflers
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/57 ratio primary drive

Performance

Horespower67.05 HP (48.9 kW)
Torque96.00 Nm (9.8 kgf-m or 70.8 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption4.90 litres/100 km (20.4 km/l or 48.00 mpg)
Fuel Capacity17.03 litres (4.50 gallons)
Emissions113.7 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake31.1°
Trail145 mm (5.7 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height648 mm (25.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,215 mm (87.2 inches)
Total Width
Ground Clearance99 mm (3.9 inches)
Wheelbase1,501 mm (59.1 inches)
Dry Weight232.0 kg (511.5 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR18
Rear Tire/Tyre150/60-ZR17
Front BrakesSingle disc. Optional ABS. Two-piston calliper.
Front Brake Diameter
Rear BrakesSingle disc. Optional ABS. Two-piston calliper.
Rear Brake Diameter
WheelsBlack/Silver, Split 5-Spoke Cast Aluminum

Comments

It appears you're interested in specifications for the Harley-Davidson Sportster SuperLow 1200T. This Touring model is powered by a Evolution engine V2, four-stroke engine with 1200.00 ccm (73.22 cubic inches) of actual displacement before 10.0:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection (ESPFI) allowing this machine to produce its 67.05 HP (48.9 kW) horsepower and 96.00 Nm (9.8 kgf-m or 70.8 ft.lbs) torque. According to our records engine heat of the Harley-Davidson Sportster SuperLow 1200T is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/70-ZR18 and the rear is 150/60-ZR17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Optional ABS. Two-piston calliper. front brakes and Single disc. Optional ABS. Two-piston calliper. rear brakes. The Harley-Davidson Sportster SuperLow 1200T was launched in 2015, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
