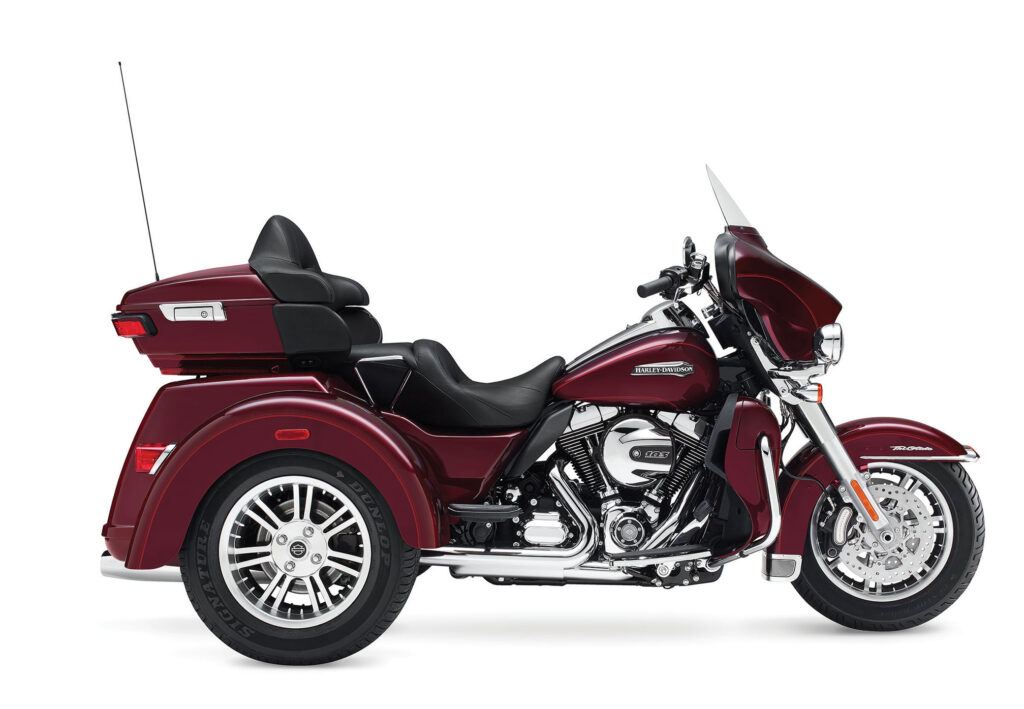

2015 Harley-Davidson Tri Glide Ultra Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2015 Harley-Davidson Tri Glide Ultra.

Basic Specs

Year2015
MakeHarley-Davidson
ModelHarley-Davidson Tri Glide Ultra
CostUS$ 32999. Euro 37085. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1687.97 ccm (103.00 cubic inches)
TypeTwin-Cooled™ High Output Twin Cam 103™
DetailsV2, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke98.4 x 111.3 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome, 2-1-2 dual exhaust with tapered mufflers
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive

Performance

Horespower85.83 HP (62.6 kW)
Torque138.00 Nm (14.1 kgf-m or 101.8 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption6.19 litres/100 km (16.2 km/l or 38.00 mpg)
Fuel Capacity22.71 litres (6.00 gallons)
Emissions143.6 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake26.0°
Trail100 mm (3.9 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height688 mm (27.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,687 mm (105.8 inches)
Total Width
Ground Clearance119 mm (4.7 inches)
Wheelbase1,692 mm (66.6 inches)
Dry Weight535.2 kg (1,180.0 pounds)
Wet Weight567.0 kg (1,250.0 pounds)

Wheels & Brakes

Front Tire/Tyre130/60-21
Rear Tire/Tyre205/65-15
Front BrakesDouble disc. 6 piston.
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
WheelsBlack, 7-spoke Cast Aluminum. Two rear wheels.

Comments

It appears you're interested in specifications for the Harley-Davidson Tri Glide Ultra. This Touring model is powered by a Twin-Cooled™ High Output Twin Cam 103™ V2, four-stroke engine with 1687.97 ccm (103.00 cubic inches) of actual displacement before 9.6:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection (ESPFI) allowing this machine to produce its 85.83 HP (62.6 kW) horsepower and 138.00 Nm (14.1 kgf-m or 101.8 ft.lbs) torque. According to our records engine heat of the Harley-Davidson Tri Glide Ultra is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 130/60-21 and the rear is 205/65-15 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. 6 piston. front brakes and Single disc rear brakes. The Harley-Davidson Tri Glide Ultra was launched in 2015, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Trike. Windshield. Cruise control. Alarm.
