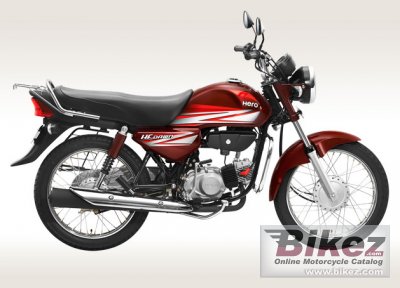

2015 Hero HF Dawn Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2015 Hero HF Dawn.

Basic Specs

Year2015
MakeHero
ModelHero HF Dawn
TypeSport
Cost

Engine

Displacement97.20 ccm (5.93 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke50.0 x 49.5 mm (2.0 x 1.9 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionDC-CDI digital
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox4-speed
Final DriveChain
ClutchWet multiplate.
DrivelineConstant mesh

Performance

Horespower8.36 HP (6.1 kW)
Torque8.05 Nm (0.8 kgf-m or 5.9 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity10.50 litres (2.77 gallons)
Emissions

Chassis

Frame TypeTubular double cradle type
Rake
Trail
Front SuspensionTelescopic hydraulic shock absorber
Front Travel
Rear SuspensionSwing arm with two adjustable hydraulic shock absorber
Rear Travel
SeatWide, 2-person seat
Seat Height805 mm (31.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,045 mm (41.1 inches)
Total Length1,965 mm (77.4 inches)
Total Width720 mm (28.3 inches)
Ground Clearance165 mm (6.5 inches)
Wheelbase1,235 mm (48.6 inches)
Dry Weight
Wet Weight109.0 kg (240.3 pounds)

Wheels & Brakes

Front Tire/Tyre2.75-18
Rear Tire/Tyre2.75-18
Front BrakesExpanding brake (drum brake)
Front Brake Diameter130 mm (5.1 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter110 mm (4.3 inches)
Wheels

Comments

It appears you're interested in specifications for the Hero HF Dawn. This Sport model is powered by a Single cylinder, four-stroke engine with 97.20 ccm (5.93 cubic inches) of actual displacement before 9.0:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 8.36 HP (6.1 kW) horsepower and 8.05 Nm (0.8 kgf-m or 5.9 ft.lbs) torque. According to our records engine heat of the Hero HF Dawn is moderated by Air. You'll need to get familiar with the 4-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 2.75-18 and the rear is 2.75-18 . The entire package is supported by the frame, Tubular double cradle type. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake) front brakes and Expanding brake (drum brake) rear brakes. The Hero HF Dawn was launched in 2015, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Made in India. Brand previously called Hero Honda.
