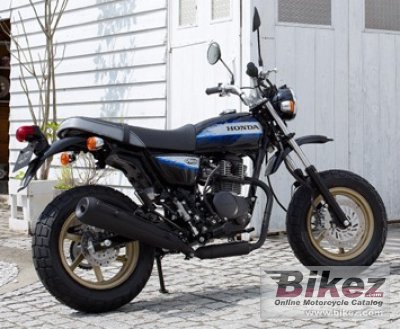

These are the known mechanical and performance specifications for your 2015 Honda Ape 100 Type D.
Basic Specs
Engine
Displacement99.00 ccm (6.04 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.4:1
Bore/Stroke53.0 x 45.0 mm (2.1 x 1.8 inches)
Valves/Cylinder
FuelingCarburettor. PB5QA
IgnitionCDI
ExhaustCatalyst exhaust pipe
LubricationForce-feed and splash
CoolingAir
Drivetrain
Gearbox5-speed
Final DriveChain
ClutchWet-type multiplate with coil springs
Driveline
Performance
Horespower6.84 HP (5.0 kW)
Torque7.00 Nm (0.7 kgf-m or 5.2 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption1.82 litres/100 km (54.9 km/l or 129.24 mpg)
Fuel Capacity5.50 litres (1.45 gallons)
Emissions42.2 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeDiamond
Rake28.3°
Trail89 mm (3.5 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionSwing arm (Pro-link)
Rear Travel
Seat
Seat Height715 mm (28.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,155 mm (45.5 inches)
Total Length1,715 mm (67.5 inches)
Total Width780 mm (30.7 inches)
Ground Clearance140 mm (5.5 inches)
Wheelbase1,190 mm (46.9 inches)
Dry Weight
Wet Weight88.0 kg (194.0 pounds)
Wheels & Brakes
Front Tire/Tyre120/80-12
Rear Tire/Tyre120/80-12
Front BrakesExpanding brake (drum brake)
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
WheelsAluminium
Comments
Sold in some Asian countries. Model id: EBJ-HC13.
