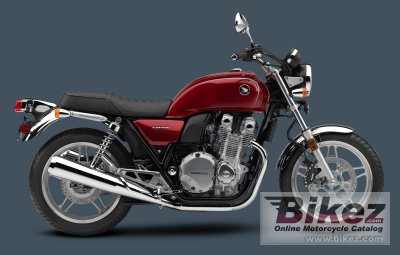

These are the known mechanical and performance specifications for your 2015 Honda CB1100 DLX.
Basic Specs
Year2015
MakeHonda
ModelHonda CB1100 DLX
TypeClassic
CostUS$ 118999. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1140.00 ccm (69.56 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke73.5 x 67.2 mm (2.9 x 2.6 inches)
Valves/Cylinder4
FuelingInjection. PGM-FI with automatic enrichment circuit, 32mm throttle bodies
IgnitionDigital transistorized with electronic advance
Exhaust4-2 Exhaust
Lubrication
CoolingOil & air
Drivetrain
Gearbox6-speed
Final DriveChain
Clutch
Driveline#530 O-ring-sealed chain
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity18.00 litres (4.76 gallons)
Emissions
Chassis
Frame Type
Rake27.0°
Trail114 mm (4.5 inches)
Front Suspension41mm fork with spring preload adjustability
Front Travel107 mm (4.2 inches)
Rear SuspensionDual shocks with spring preload adjustability
Rear Travel114 mm (4.5 inches)
Seat
Seat Height795 mm (31.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,491 mm (58.7 inches)
Dry Weight259.0 kg (570.9 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre110/80-18
Rear Tire/Tyre140/70-18
Front BrakesDouble disc. ABS. Floating discs. Four-piston calipers.
Front Brake Diameter296 mm (11.7 inches)
Rear BrakesSingle disc. ABS. Single-piston caliper.
Rear Brake Diameter256 mm (10.1 inches)
Wheels
Comments
Model ID: CB1100A
