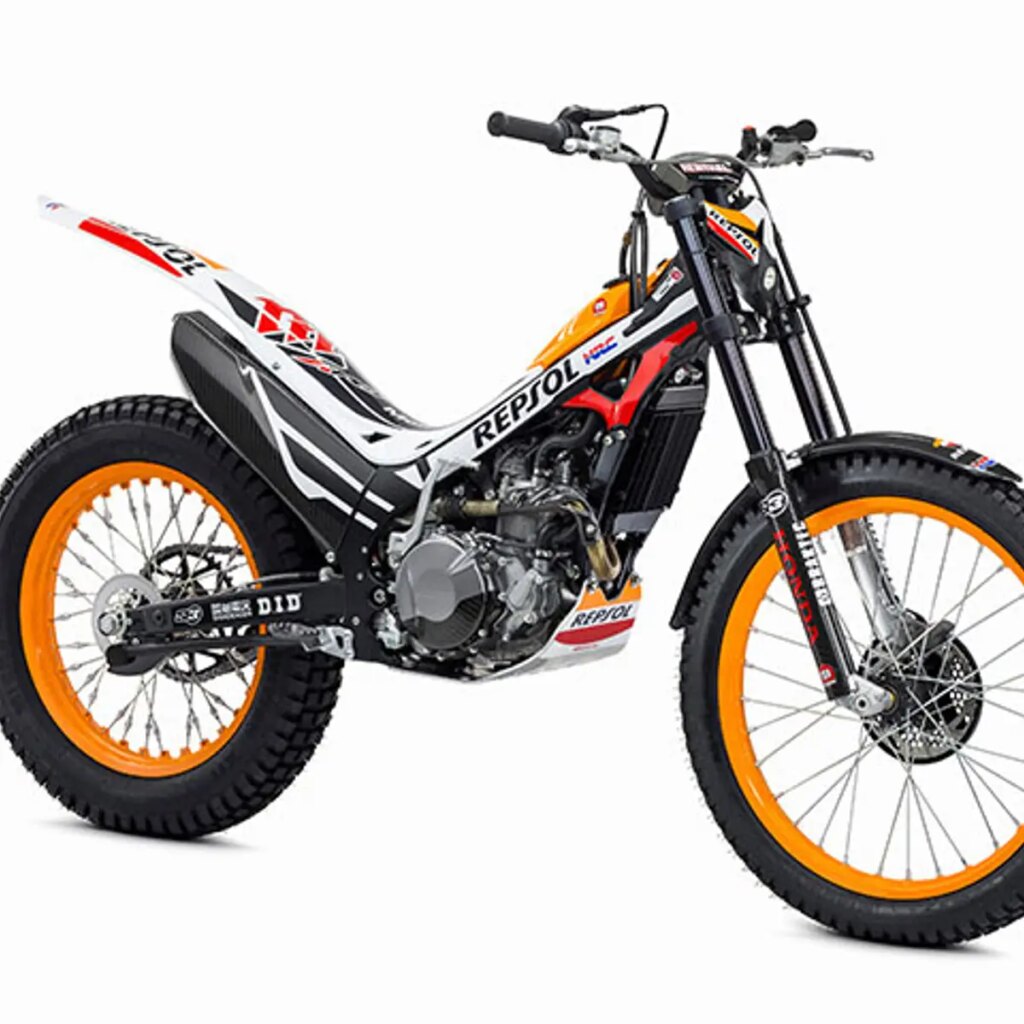

2015 Honda Montesa Cota 4RT Race Replica Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2015 Honda Montesa Cota 4RT Race Replica.

Basic Specs

Year2015
MakeHonda
ModelHonda Montesa Cota 4RT Race Replica
TypeTrial
CostUS$ 9499. Prices depend on country, taxes, accessories, etc.

Engine

Displacement259.00 ccm (15.80 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.5:1
Bore/Stroke78.0 x 54.2 mm (3.1 x 2.1 inches)
Valves/Cylinder4
FuelingInjection. Programmed Fuel Injection (PGM-FI) 28mm throttle body
IgnitionElectronically controlled digital transistorized
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchMulitplate in oil bath
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity2.00 litres (0.53 gallons)
Emissions

Chassis

Frame Type
Rake23.0°
Trail64 mm (2.5 inches)
Front Suspension39mm Showa ® cartridge-type telescopic fork with Pre-load compression and extension adjustments.
Front Travel175 mm (6.9 inches)
Rear SuspensionPro-Link ® , Showa ® damper with Pre-load and extension adjustments.
Rear Travel170 mm (6.7 inches)
Seat
Seat Height650 mm (25.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,140 mm (44.9 inches)
Total Length2,016 mm (79.4 inches)
Total Width830 mm (32.7 inches)
Ground Clearance335 mm (13.2 inches)
Wheelbase1,321 mm (52.0 inches)
Dry Weight73.0 kg (160.9 pounds)
Wet Weight74.3 kg (163.7 pounds)

Wheels & Brakes

Front Tire/Tyre2.75-21
Rear Tire/Tyre4.00-18
Front BrakesSingle disc
Front Brake Diameter185 mm (7.3 inches)
Rear BrakesSingle disc
Rear Brake Diameter150 mm (5.9 inches)
WheelsMichelin tyres

Comments

It appears you're interested in specifications for the Honda Montesa Cota 4RT Race Replica. This Trial model is powered by a Single cylinder, four-stroke engine with 259.00 ccm (15.80 cubic inches) of actual displacement before 10.5:1 compression. Fueling is metered via Injection. Programmed Fuel Injection (PGM-FI) 28mm throttle body allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda Montesa Cota 4RT Race Replica is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 2.75-21 and the rear is 4.00-18 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Honda Montesa Cota 4RT Race Replica was launched in 2015, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model id: MRT2604F.
