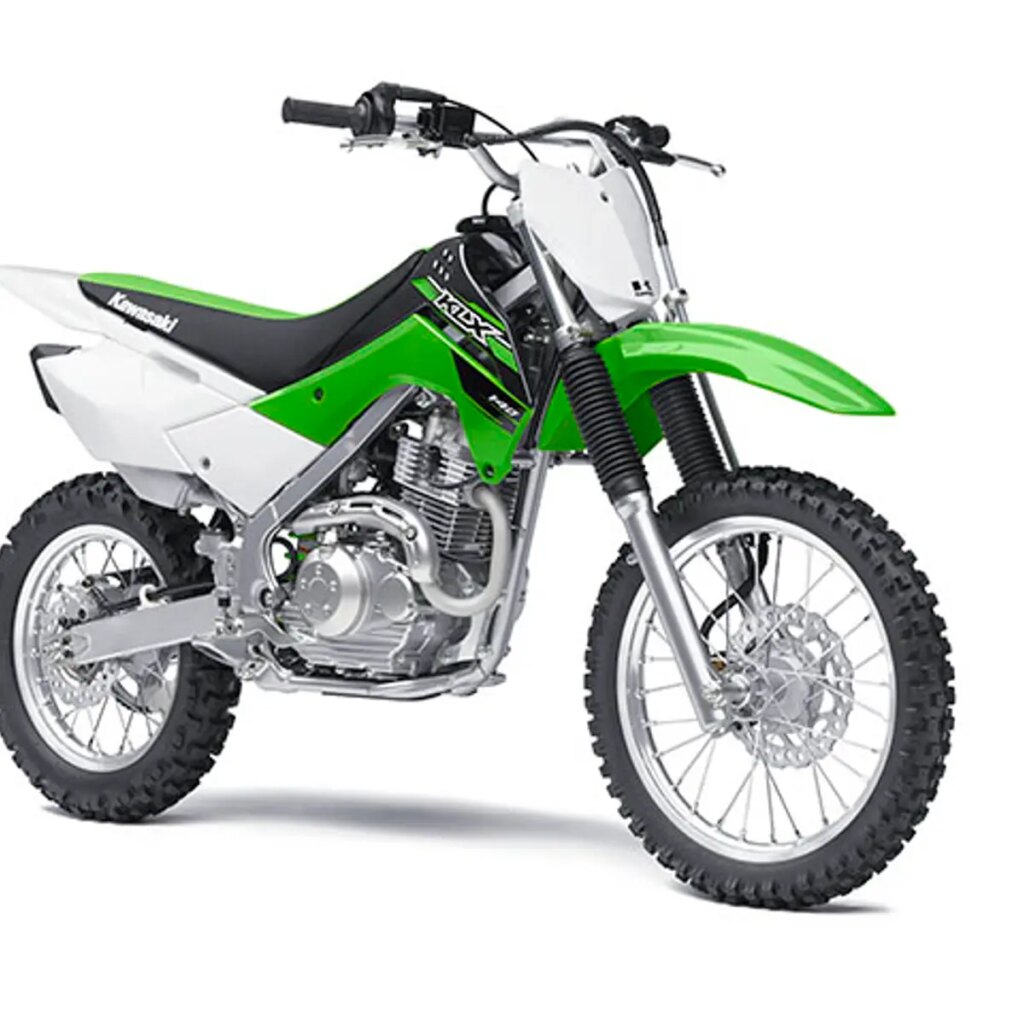

These are the known mechanical and performance specifications for your 2015 Kawasaki KLX 140.
Basic Specs
Year2015
MakeKawasaki
ModelKawasaki KLX 140
TypeEnduro / offroad
CostUS$ 3099. Prices depend on country, taxes, accessories, etc.
Engine
Displacement144.00 ccm (8.79 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke58.0 x 54.4 mm (2.3 x 2.1 inches)
Valves/Cylinder2
FuelingCarburettor. Keihin PB20
IgnitionCDI
Exhaust
Lubrication
CoolingAir
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity5.68 litres (1.50 gallons)
Emissions
Chassis
Frame TypeHigh-Tensile steel, box-section perimeter
Rake27.0°
Trail84 mm (3.3 inches)
Front Suspension33mm telescopic fork / 7.1 in.
Front Travel
Rear SuspensionUNI-TRAK linkage system and single shock with 5-way preload adjustability / 7.1 in.
Rear Travel
Seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,049 mm (41.3 inches)
Total Length1,821 mm (71.7 inches)
Total Width790 mm (31.1 inches)
Ground Clearance236 mm (9.3 inches)
Wheelbase1,260 mm (49.6 inches)
Dry Weight
Wet Weight93.0 kg (205.0 pounds)
Wheels & Brakes
Front Tire/Tyre70/100-17
Rear Tire/Tyre90/100-14
Front BrakesSingle disc. Two-piston calipers.
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter186 mm (7.3 inches)
Wheels
Comments
