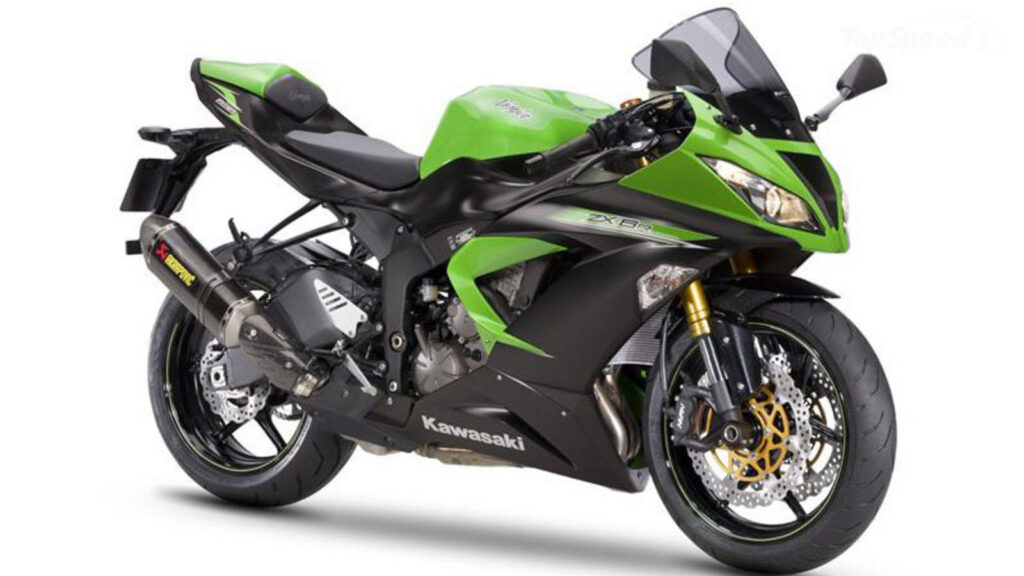

2015 Kawasaki Ninja ZX-6R 636 ABS 30th Anniversary Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2015 Kawasaki Ninja ZX-6R 636 ABS 30th Anniversary.

Basic Specs

Year2015
MakeKawasaki
ModelKawasaki Ninja ZX-6R 636 ABS 30th Anniversary
TypeSport
CostUS$ 12999. Prices depend on country, taxes, accessories, etc.

Engine

Displacement636.00 ccm (38.81 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression12.9:1
Bore/Stroke67.0 x 41.5 mm (2.6 x 1.6 inches)
Valves/Cylinder4
FuelingInjection. 38 mm x 4 (Keihin) with oval sub-throttles
IgnitionDigital
Exhaust
LubricationForced lubrication, wet sump with oil cooler
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet multi-disc, manual
DrivelineSealed chain

Performance

Horespower131.00 HP (95.6 kW)
Torque71.00 Nm (7.2 kgf-m or 52.4 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.00 litres (4.49 gallons)
Emissions

Chassis

Frame TypeAluminium perimeter
Rake23.5°
Trail101 mm (4.0 inches)
Front Suspension41 mm inverted fork with top-out springs
Front Travel120 mm (4.7 inches)
Rear SuspensionBottom-Link Uni-Trak with gas-charged shock, top-out spring and pillow ball upper mount
Rear Travel134 mm (5.3 inches)
Seat
Seat Height830 mm (32.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,115 mm (43.9 inches)
Total Length2,085 mm (82.1 inches)
Total Width705 mm (27.8 inches)
Ground Clearance130 mm (5.1 inches)
Wheelbase1,395 mm (54.9 inches)
Dry Weight
Wet Weight194.0 kg (427.7 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. Floating discs. Optional ABS.
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. Optional ABS.
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Kawasaki Ninja ZX-6R 636 ABS 30th Anniversary. This Sport model is powered by a In-line four, four-stroke engine with 636.00 ccm (38.81 cubic inches) of actual displacement before 12.9:1 compression. Fueling is metered via Injection. 38 mm x 4 (Keihin) with oval sub-throttles allowing this machine to produce its 131.00 HP (95.6 kW) horsepower and 71.00 Nm (7.2 kgf-m or 52.4 ft.lbs) torque. According to our records engine heat of the Kawasaki Ninja ZX-6R 636 ABS 30th Anniversary is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Aluminium perimeter. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Floating discs. Optional ABS. front brakes and Single disc. Optional ABS. rear brakes. The Kawasaki Ninja ZX-6R 636 ABS 30th Anniversary was launched in 2015, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
