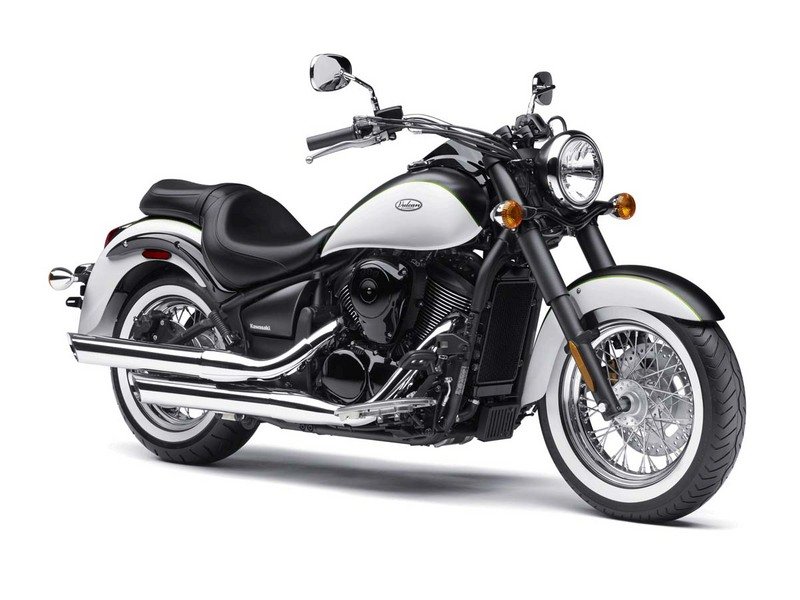

2015 Kawasaki Vulcan 900 Classic Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2015 Kawasaki Vulcan 900 Classic.

Basic Specs

Year2015
MakeKawasaki
ModelKawasaki Vulcan 900 Classic
CostUS$ 7999. Prices depend on country, taxes, accessories, etc.

Engine

Displacement903.00 ccm (55.10 cubic inches)
Type52° V-twin
DetailsV2, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke88.0 x 74.2 mm (3.5 x 2.9 inches)
Valves/Cylinder4
FuelingInjection. DFI with dual 34mm Keihin throttle bodies
IgnitionTCBI with Electronic Advance
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveBelt
Clutch
DrivelineKevlar-reinforced belt

Performance

Horespower
Torque78.92 Nm (8.0 kgf-m or 58.2 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity20.06 litres (5.30 gallons)
Emissions

Chassis

Frame TypeSemi-double cradle, high-tensile steel
Rake32.0°
Trail160 mm (6.3 inches)
Front Suspension41mm hydraulic telescopic fork
Front Travel150 mm (5.9 inches)
Rear SuspensionUni-Trak swingarm, 7 way adjustable spring preload
Rear Travel104 mm (4.1 inches)
Seat
Seat Height681 mm (26.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,064 mm (41.9 inches)
Total Length2,464 mm (97.0 inches)
Total Width1,006 mm (39.6 inches)
Ground Clearance135 mm (5.3 inches)
Wheelbase1,646 mm (64.8 inches)
Dry Weight
Wet Weight281.1 kg (619.6 pounds)

Wheels & Brakes

Front Tire/Tyre130/90-16
Rear Tire/Tyre180/70-15
Front BrakesSingle disc. Hydraulic. Two-piston calipers.
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. Hydraulic. Two-piston calipers.
Rear Brake Diameter300 mm (11.8 inches)
Wheels

Comments

It appears you're interested in specifications for the Kawasaki Vulcan 900 Classic. This Custom / cruiser model is powered by a 52° V-twin V2, four-stroke engine with 903.00 ccm (55.10 cubic inches) of actual displacement before 9.5:1 compression. Fueling is metered via Injection. DFI with dual 34mm Keihin throttle bodies allowing this machine to produce its horsepower and 78.92 Nm (8.0 kgf-m or 58.2 ft.lbs) torque. According to our records engine heat of the Kawasaki Vulcan 900 Classic is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 130/90-16 and the rear is 180/70-15 . The entire package is supported by the frame, Semi-double cradle, high-tensile steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Hydraulic. Two-piston calipers. front brakes and Single disc. Hydraulic. Two-piston calipers. rear brakes. The Kawasaki Vulcan 900 Classic was launched in 2015, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
