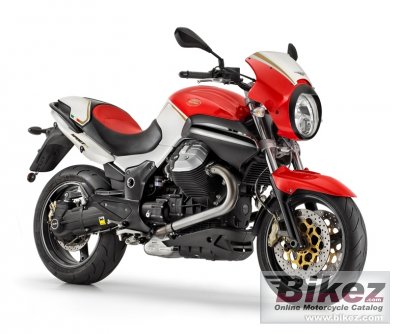

2015 Moto Guzzi 1200 Sport Rosso Corsa Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2015 Moto Guzzi 1200 Sport Rosso Corsa.

Basic Specs

Year2015
MakeMoto Guzzi
ModelMoto Guzzi 1200 Sport Rosso Corsa
Cost Euro 10434. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1151.00 ccm (70.23 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke95.0 x 81.2 mm (3.7 x 3.2 inches)
Valves/Cylinder
FuelingInjection
IgnitionMultipoint sequential electronic ignition, Magneti Marelli
ExhaustStainless steel, 2 into 1 type with catalytic converter, height adjustable muffler
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchSingle-disc with integrated anti-vibration buffer
DrivelineCompact reactive cardan shaft drive system called CA.R.C.; double joint and floating bevel gear pair, ratio 12/44 = 1 : 3.666

Performance

Horespower105.00 HP (76.6 kW)
Torque105.00 Nm (10.7 kgf-m or 77.4 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity32.00 litres (8.45 gallons)
Emissions

Chassis

Frame TypeTubular in high-strength steel with integrated engine
Rake27.0°
Trail125 mm (4.9 inches)
Front SuspensionFork with Ø 50mm inverted stems, fully adjustable (spring preload and hydraulic compression and rebound damping)
Front Travel
Rear SuspensionProgressive single swingarm, fully adjustable monoshock with separate gas reservoir (spring preload and hydraulic for rebound and compression).
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height1,160 mm (45.7 inches)
Total Length2,195 mm (86.4 inches)
Total Width840 mm (33.1 inches)
Ground Clearance
Wheelbase1,535 mm (60.4 inches)
Dry Weight
Wet Weight240.0 kg (529.1 pounds)

Wheels & Brakes

Front Tire/Tyre110/80-17
Rear Tire/Tyre180/55-17
Front BrakesDouble disc. Stainless steel wave discs, radial calipers with 4 opposed pistons.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Single fixed stainless steel disc, floating caliper with 2 parallel pistons.
Rear Brake Diameter282 mm (11.1 inches)
Wheels

Comments

It appears you're interested in specifications for the Moto Guzzi 1200 Sport Rosso Corsa. This Enduro / offroad model is powered by a V2, four-stroke engine with 1151.00 ccm (70.23 cubic inches) of actual displacement before 11.0:1 compression. Fueling is metered via Injection allowing this machine to produce its 105.00 HP (76.6 kW) horsepower and 105.00 Nm (10.7 kgf-m or 77.4 ft.lbs) torque. According to our records engine heat of the Moto Guzzi 1200 Sport Rosso Corsa is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 110/80-17 and the rear is 180/55-17 . The entire package is supported by the frame, Tubular in high-strength steel with integrated engine. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Stainless steel wave discs, radial calipers with 4 opposed pistons. front brakes and Single disc. Single fixed stainless steel disc, floating caliper with 2 parallel pistons. rear brakes. The Moto Guzzi 1200 Sport Rosso Corsa was launched in 2015, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
