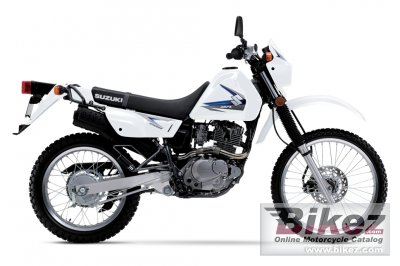

2015 Suzuki DR200SE Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2015 Suzuki DR200SE.

Basic Specs

Year2015
MakeSuzuki
ModelSuzuki DR200SE
Cost

Engine

Displacement199.00 ccm (12.14 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.4:1
Bore/Stroke66.0 x 58.2 mm (2.6 x 2.3 inches)
Valves/Cylinder
FuelingCarburettor. MIikuni BST31SS, single
IgnitionCDI
ExhaustPainted stainless-steel exhaust
LubricationWet sump
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch
DrivelineDID520V, 112links

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity10.98 litres (2.90 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionTelescopic, coil spring, oil damped
Front Travel
Rear SuspensionLink type, coil spring, oil damped
Rear Travel
Seat
Seat Height850 mm (33.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,185 mm (46.7 inches)
Total Length2,200 mm (86.6 inches)
Total Width805 mm (31.7 inches)
Ground Clearance260 mm (10.2 inches)
Wheelbase1,405 mm (55.3 inches)
Dry Weight
Wet Weight132.0 kg (291.0 pounds)

Wheels & Brakes

Front Tire/Tyre70/100-21
Rear Tire/Tyre100/90-18
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Suzuki DR200SE. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 199.00 ccm (12.14 cubic inches) of actual displacement before 9.4:1 compression. Fueling is metered via Carburettor. MIikuni BST31SS, single allowing this machine to produce its horsepower and torque. According to our records engine heat of the Suzuki DR200SE is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 70/100-21 and the rear is 100/90-18 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Suzuki DR200SE was launched in 2015, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
