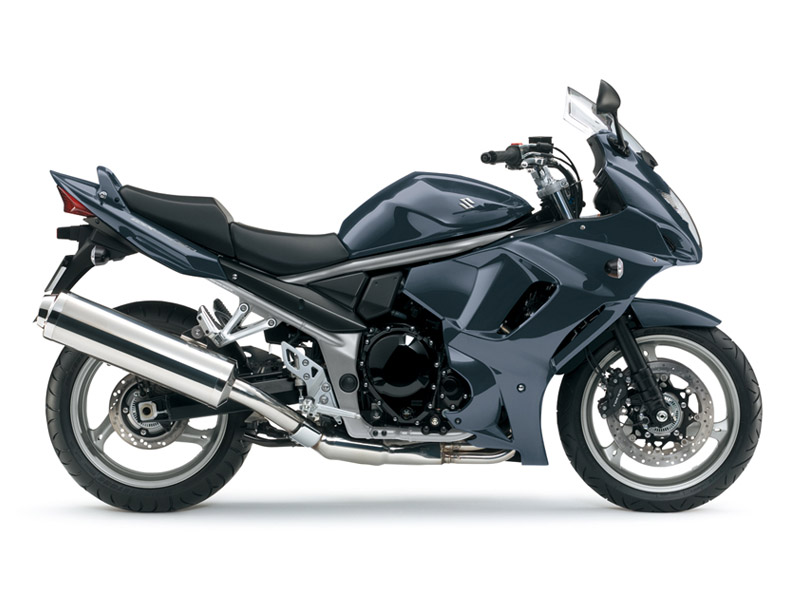

2015 Suzuki GSX1250 FA Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2015 Suzuki GSX1250 FA.

Basic Specs

Year2015
MakeSuzuki
ModelSuzuki GSX1250 FA
TypeSport
Cost

Engine

Displacement1255.00 ccm (76.58 cubic inches)
TypeA secondary balancer shaft enhances the engine´s smooth operation.
DetailsIn-line four, four-stroke
Max RPM
Compression10.5:1
Bore/Stroke79.0 x 64.0 mm (3.1 x 2.5 inches)
Valves/Cylinder
FuelingInjection. Suzuki Dual Throttle valve (SDTV) fuel injection, featuring 36mm throttle bodies.
IgnitionElectronic ignition (Transistorized)
Exhaust
LubricationWet sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
DrivelineRK GB50GSVZ3, 118 links

Performance

Horespower98.00 HP (71.5 kW)
Torque108.00 Nm (11.0 kgf-m or 79.7 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity19.00 litres (5.02 gallons)
Emissions

Chassis

Frame TypeClassic tube-frame chassis
Rake25.6°
Trail104 mm (4.1 inches)
Front SuspensionTelescopic, coil spring, oil damped
Front Travel
Rear SuspensionLink type, coil spring, oil damped
Rear Travel
Seat
Seat Height805 mm (31.7 inches) If adjustable, lowest setting.
Alt. Seat Height825 mm (32.5 inches) If adjustable, highest setting.
Total Height
Total Length2,130 mm (83.9 inches)
Total Width790 mm (31.1 inches)
Ground Clearance135 mm (5.3 inches)
Wheelbase1,485 mm (58.5 inches)
Dry Weight
Wet Weight257.0 kg (566.6 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. Digital Antilock Brake System (ABS)
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. Digital Antilock Brake System (ABS)
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Suzuki GSX1250 FA. This Sport model is powered by a A secondary balancer shaft enhances the engine´s smooth operation. In-line four, four-stroke engine with 1255.00 ccm (76.58 cubic inches) of actual displacement before 10.5:1 compression. Fueling is metered via Injection. Suzuki Dual Throttle valve (SDTV) fuel injection, featuring 36mm throttle bodies. allowing this machine to produce its 98.00 HP (71.5 kW) horsepower and 108.00 Nm (11.0 kgf-m or 79.7 ft.lbs) torque. According to our records engine heat of the Suzuki GSX1250 FA is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Classic tube-frame chassis. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Digital Antilock Brake System (ABS) front brakes and Single disc. Digital Antilock Brake System (ABS) rear brakes. The Suzuki GSX1250 FA was launched in 2015, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Small windscreen.
