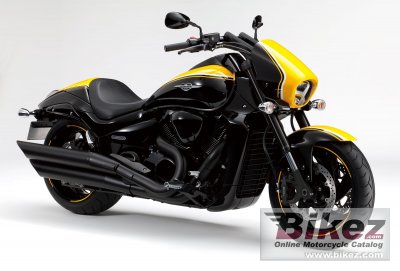

2015 Suzuki Intruder M1800R Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2015 Suzuki Intruder M1800R.

Basic Specs

Year2015
MakeSuzuki
ModelSuzuki Intruder M1800R
Cost

Engine

Displacement1783.00 ccm (108.80 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression10.6:1
Bore/Stroke112.0 x 90.5 mm (4.4 x 3.6 inches)
Valves/Cylinder4
FuelingInjection
IgnitionElectronic ignition (Transistorised)
Exhaust
LubricationSemi-dry sump
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline

Performance

Horespower123.37 HP (90.1 kW)
Torque160.00 Nm (16.3 kgf-m or 118.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity19.50 litres (5.15 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionInverted telescopic, coil spring, oil damped
Front Travel
Rear SuspensionLink type, coil spring, oil damped
Rear Travel
SeatSolo-seat cover can be swapped for the included passenger seat
Seat Height705 mm (27.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,130 mm (44.5 inches)
Total Length2,480 mm (97.6 inches)
Total Width875 mm (34.4 inches)
Ground Clearance
Wheelbase1,710 mm (67.3 inches)
Dry Weight319.0 kg (703.3 pounds)
Wet Weight347.0 kg (765.0 pounds)

Wheels & Brakes

Front Tire/Tyre130/70-18
Rear Tire/Tyre240/40-18
Front BrakesDouble disc. Radial Mount Brake Calipers.
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
WheelsBlack 6-spoke

Comments

It appears you're interested in specifications for the Suzuki Intruder M1800R. This Custom / cruiser model is powered by a V2, four-stroke engine with 1783.00 ccm (108.80 cubic inches) of actual displacement before 10.6:1 compression. Fueling is metered via Injection allowing this machine to produce its 123.37 HP (90.1 kW) horsepower and 160.00 Nm (16.3 kgf-m or 118.0 ft.lbs) torque. According to our records engine heat of the Suzuki Intruder M1800R is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 130/70-18 and the rear is 240/40-18 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Radial Mount Brake Calipers. front brakes and Single disc rear brakes. The Suzuki Intruder M1800R was launched in 2015, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
