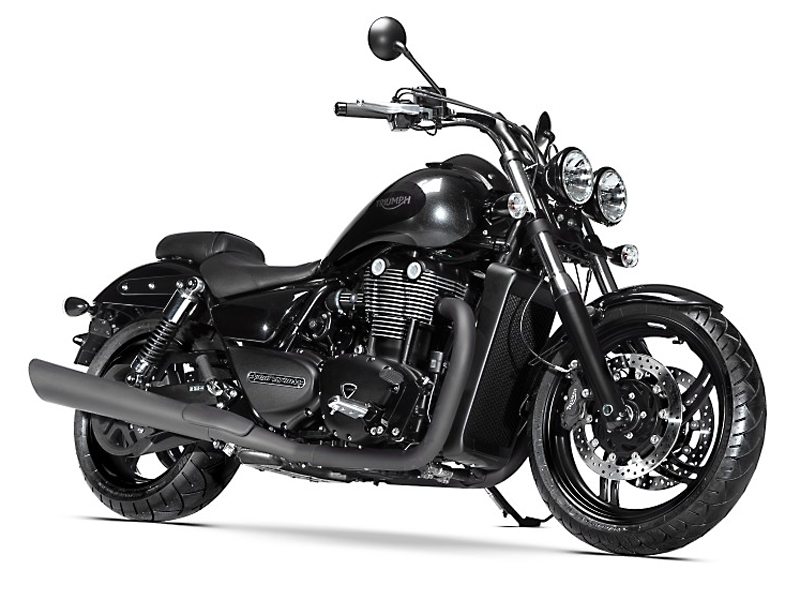

2015 Triumph Thunderbird Nightstorm Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2015 Triumph Thunderbird Nightstorm.

Basic Specs

Year2015
MakeTriumph
ModelTriumph Thunderbird Nightstorm
CostUS$ 14999. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1699.00 ccm (103.67 cubic inches)
Type270º firing interval
DetailsTwin, four-stroke
Max RPM
Compression9.7:1
Bore/Stroke107.1 x 94.3 mm (4.2 x 3.7 inches)
Valves/Cylinder
FuelingInjection. Multipoint sequential electronic fuel injection. progressive linkage on throttle
IgnitionDigital-inductive type via engine management system
ExhaustChromed twin-skin stainless steel 2 into 1 into 2. tandem large-volume catalysts in centralized catbox. chrome-plated exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchWet. multi-plate
DrivelineToothed Belt

Performance

Horespower98.00 HP (71.5 kW)
Torque156.00 Nm (15.9 kgf-m or 115.1 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption7.13 litres/100 km (14.0 km/l or 32.99 mpg)
Fuel Capacity22.00 litres (5.81 gallons)
Emissions165.4 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeTubular Steel. twin spine
Rake32.0°
Trail151 mm (5.9 inches)
Front SuspensionShowa 47mm forks with black lowers.
Front Travel120 mm (4.7 inches)
Rear SuspensionShowa black spring twin shocks with 5 position adjustable preload.
Rear Travel95 mm (3.7 inches)
Seat
Seat Height700 mm (27.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,120 mm (44.1 inches)
Total Length2,340 mm (92.1 inches)
Total Width880 mm (34.6 inches)
Ground Clearance
Wheelbase1,615 mm (63.6 inches)
Dry Weight308.0 kg (679.0 pounds)
Wet Weight339.0 kg (747.4 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-R19
Rear Tire/Tyre200/50-R17
Front BrakesDouble disc. Nissin 4-piston fixed calipers. ABS.
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. Brembo 2-piston floating caliper. ABS
Rear Brake Diameter310 mm (12.2 inches)
WheelsCast aluminum alloy 5-spoke

Comments

It appears you're interested in specifications for the Triumph Thunderbird Nightstorm. This Custom / cruiser model is powered by a 270º firing interval Twin, four-stroke engine with 1699.00 ccm (103.67 cubic inches) of actual displacement before 9.7:1 compression. Fueling is metered via Injection. Multipoint sequential electronic fuel injection. progressive linkage on throttle allowing this machine to produce its 98.00 HP (71.5 kW) horsepower and 156.00 Nm (15.9 kgf-m or 115.1 ft.lbs) torque. According to our records engine heat of the Triumph Thunderbird Nightstorm is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/70-R19 and the rear is 200/50-R17 . The entire package is supported by the frame, Tubular Steel. twin spine. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Nissin 4-piston fixed calipers. ABS. front brakes and Single disc. Brembo 2-piston floating caliper. ABS rear brakes. The Triumph Thunderbird Nightstorm was launched in 2015, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Special edition of the Triumph Thunderbird Storm.
