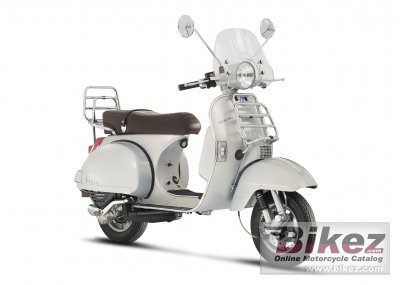

2015 Vespa PX 125 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2015 Vespa PX 125.

Basic Specs

Year2015
MakeVespa
ModelVespa PX 125
Cost Euro 3730. Prices depend on country, taxes, accessories, etc.

Engine

Displacement123.50 ccm (7.54 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke52.5 x 57.0 mm (2.1 x 2.2 inches)
Valves/Cylinder2
FuelingCarburettor
IgnitionCDI
Exhaust
LubricationOil pump
CoolingAir

Drivetrain

Gearbox4-speed
Final DriveBelt
ClutchWet, centrifugal clutch, cable operated
Driveline

Performance

Horespower8.85 HP (6.5 kW)
Torque9.60 Nm (1.0 kgf-m or 7.1 ft.lbs)
Top Speed87.0 km/h (54.1 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity8.00 litres (2.11 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionSingle sided trailing link with hydraulic shock absorber
Front Travel
Rear SuspensionHydraulic monoshock
Rear Travel
Seat
Seat Height810 mm (31.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length1,810 mm (71.3 inches)
Total Width740 mm (29.1 inches)
Ground Clearance
Wheelbase1,260 mm (49.6 inches)
Dry Weight97.0 kg (213.8 pounds)
Wet Weight106.0 kg (233.7 pounds)

Wheels & Brakes

Front Tire/Tyre3.50-10
Rear Tire/Tyre3.50-10
Front BrakesSingle disc. Stainless steel disc
Front Brake Diameter200 mm (7.9 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter150 mm (5.9 inches)
Wheels

Comments

It appears you're interested in specifications for the Vespa PX 125. This Scooter model is powered by a Single cylinder, two-stroke engine with 123.50 ccm (7.54 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor allowing this machine to produce its 8.85 HP (6.5 kW) horsepower and 9.60 Nm (1.0 kgf-m or 7.1 ft.lbs) torque. According to our records engine heat of the Vespa PX 125 is moderated by Air. You'll need to get familiar with the 4-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 3.50-10 and the rear is 3.50-10 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Stainless steel disc front brakes and Expanding brake (drum brake) rear brakes. The Vespa PX 125 was launched in 2015, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
