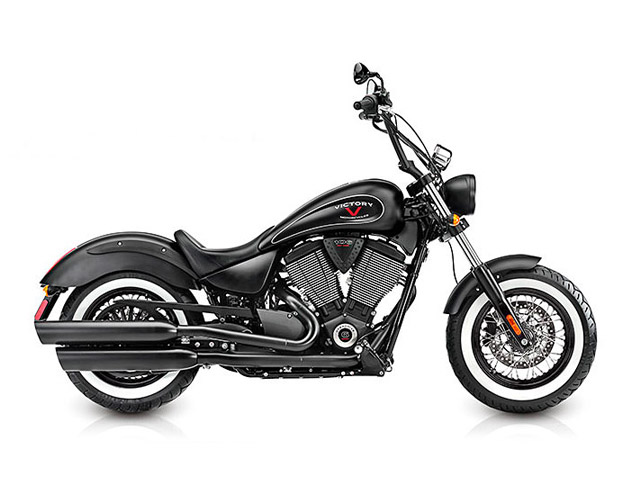

These are the known mechanical and performance specifications for your 2015 Victory High-Ball.

Basic Specs

Year2015
MakeVictory
ModelVictory High-Ball
CostUS$ 13349. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1737.14 ccm (106.00 cubic inches)
Type50° V-Twin. Self-adjusting cam chains, hydraulic lifters.
DetailsV2, four-stroke
Max RPM
Compression9.4:1
Bore/Stroke101.0 x 108.0 mm (4.0 x 4.3 inches)
Valves/Cylinder4
FuelingInjection. Electronic Fuel Injection with dual 45mm throttle body
Ignition
ExhaustStaggered slash-cut dual exhaust with crossover
Lubrication
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchWet, multi-plate
DrivelineCarbon Fiber Reinforced Belt. Primary drive: Gear drive with torque compensator.

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.03 litres (4.50 gallons)
Emissions

Chassis

Frame Type
Rake31.7°
Trail170 mm (6.7 inches)
Front SuspensionConventional telescopic fork, 43 mm diameter, 5.1 in / 130 mm travel
Front Travel
Rear SuspensionSingle, mono-tube gas, cast aluminum with rising rate linkage, 3.0 in / 75 mm travel, preload adjustable spring
Rear Travel
Seat
Seat Height635 mm (25.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,372 mm (93.4 inches)
Total Width
Ground Clearance120 mm (4.7 inches)
Wheelbase1,647 mm (64.8 inches)
Dry Weight300.0 kg (661.4 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre130/90-16
Rear Tire/Tyre150/80-16
Front BrakesSingle disc. Floating rotor with 4-piston calipers.
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. Floating rotor with 2-piston caliper.
Rear Brake Diameter300 mm (11.8 inches)
WheelsMetzeler ME880 tires

Comments

It appears you're interested in specifications for the Victory High-Ball. This Custom / cruiser model is powered by a 50° V-Twin. Self-adjusting cam chains, hydraulic lifters. V2, four-stroke engine with 1737.14 ccm (106.00 cubic inches) of actual displacement before 9.4:1 compression. Fueling is metered via Injection. Electronic Fuel Injection with dual 45mm throttle body allowing this machine to produce its horsepower and torque. According to our records engine heat of the Victory High-Ball is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 130/90-16 and the rear is 150/80-16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Floating rotor with 4-piston calipers. front brakes and Single disc. Floating rotor with 2-piston caliper. rear brakes. The Victory High-Ball was launched in 2015, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
