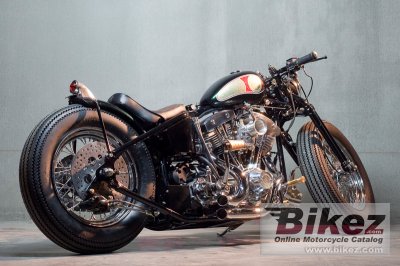

These are the known mechanical and performance specifications for your 2015 Zero Engineering Type 6.
Basic Specs
Engine
Displacement1520.00 ccm (92.75 cubic inches)
TypeS and S showelhead, panhead or nucklehead vintage enignes available
DetailsV2, four-stroke
Max RPM
Compression
Bore/Stroke92.0 x 114.3 mm (3.6 x 4.5 inches)
Valves/Cylinder
FuelingCarburettor. HSR carburetor
Ignition
Exhaust
Lubrication
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchBaker 6 Speed, optional HD 5-speed
DrivelineOpen primary.
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity7.50 litres (1.98 gallons)
Emissions
Chassis
Frame TypeGooseneck frame
Rake
Trail
Front SuspensionZero design springer fork
Front Travel
Rear Suspension
Rear Travel
SeatSolo seat
Seat Height660 mm (26.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height930 mm (36.6 inches)
Total Length2,300 mm (90.6 inches)
Total Width720 mm (28.3 inches)
Ground Clearance100 mm (3.9 inches)
Wheelbase1,600 mm (63.0 inches)
Dry Weight227.0 kg (500.4 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre5.00-16
Rear Tire/Tyre5.00-16
Front BrakesSingle disc. Hydraulic
Front Brake Diameter
Rear BrakesSingle disc. Hydraulic
Rear Brake Diameter
WheelsWire spoked
Comments
Made in Japan. Customizable.
