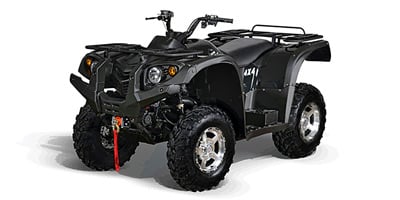

2016 Bennche Gray Wolf 500 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2016 Bennche Gray Wolf 500.

Basic Specs

Year2016
MakeBennche
ModelBennche Gray Wolf 500
TypeATV
CostUS$ 6099. Prices depend on country, taxes, accessories, etc.

Engine

Displacement471.00 ccm (28.74 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.4:1
Bore/Stroke84.0 x 84.5 mm (3.3 x 3.3 inches)
Valves/Cylinder
FuelingInjection. EFI
IgnitionElectronic Control Unit
Exhaust
Lubrication
CoolingLiquid

Drivetrain

GearboxAutomatic
Final DriveShaft drive (cardan)
Clutch
DrivelineOn-Demand 2WD/4WD; Locking Differential. Automatic L-H-N-R-P.

Performance

Horespower22.80 HP (16.6 kW)
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity16.28 litres (4.30 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionIndependent Double Wishbone
Front Travel
Rear SuspensionIndependent Double Wishbone
Rear Travel
Seat
Seat Height859 mm (33.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,214 mm (47.8 inches)
Total Length2,230 mm (87.8 inches)
Total Width1,123 mm (44.2 inches)
Ground Clearance257 mm (10.1 inches)
Wheelbase1,351 mm (53.2 inches)
Dry Weight328.9 kg (725.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre25/8-12
Rear Tire/Tyre25/10-12
Front BrakesSingle disc. Hydraulic
Front Brake Diameter
Rear BrakesSingle disc. Hydraulic
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Bennche Gray Wolf 500. This ATV model is powered by a Single cylinder, four-stroke engine with 471.00 ccm (28.74 cubic inches) of actual displacement before 9.4:1 compression. Fueling is metered via Injection. EFI allowing this machine to produce its 22.80 HP (16.6 kW) horsepower and torque. According to our records engine heat of the Bennche Gray Wolf 500 is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 25/8-12 and the rear is 25/10-12 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Hydraulic front brakes and Single disc. Hydraulic rear brakes. The Bennche Gray Wolf 500 was launched in 2016, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
