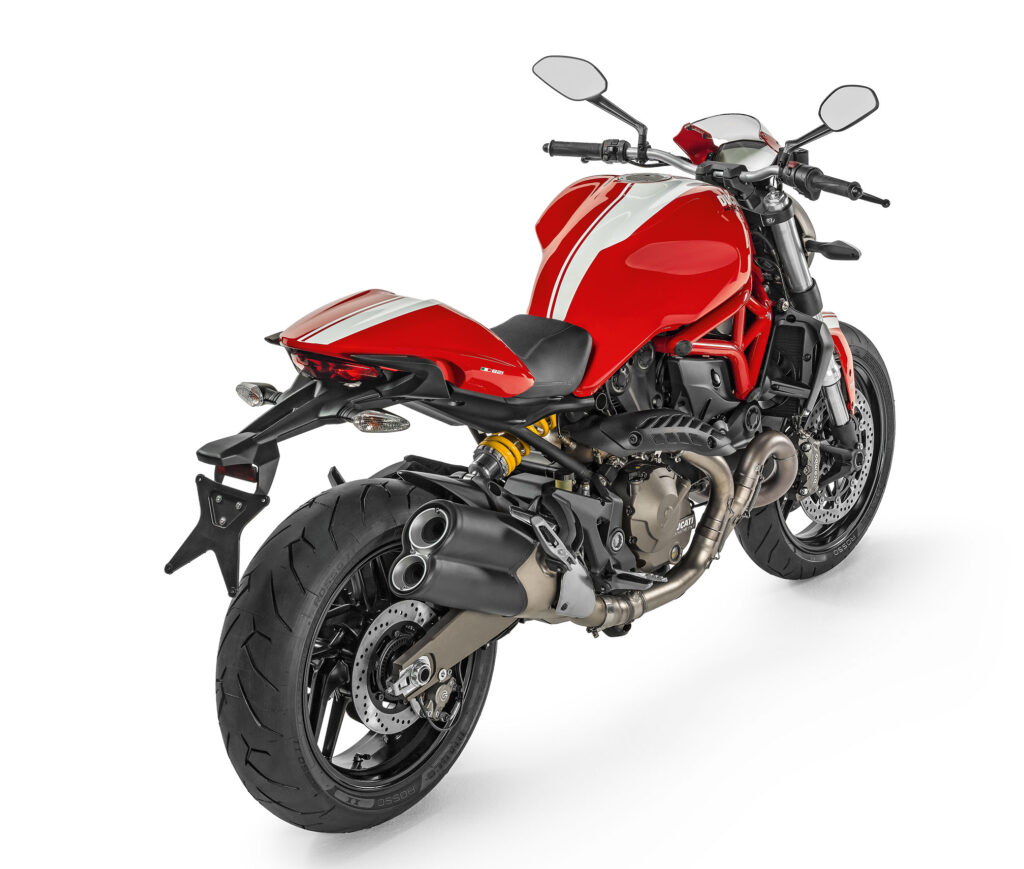

2016 Ducati Monster 821 Stripe Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2016 Ducati Monster 821 Stripe.

Basic Specs

Year2016
MakeDucati
ModelDucati Monster 821 Stripe
Cost

Engine

Displacement821.00 ccm (50.10 cubic inches)
TypeL-twin
DetailsV2, four-stroke
Max RPM
Compression12.8:1
Bore/Stroke88.0 x 67.5 mm (3.5 x 2.7 inches)
Valves/Cylinder4
FuelingInjection. 53mm throttle bodies with full Ride by Wire
Ignition
ExhaustStainless steel muffler and aluminium and cap; lightweight 2-1 system with catalytic converter with 2 lambda probes
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchAPTC slipper and self-servo wet multiplate clutch with control cable
DrivelineFront sprocket 15; Rear sprocket 46

Performance

Horespower112.00 HP (81.8 kW)
Torque89.40 Nm (9.1 kgf-m or 65.9 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.50 litres (4.62 gallons)
Emissions

Chassis

Frame TypeTubular steel Trellis frame attached to the cylinders head
Rake24.3°
Trail93 mm (3.7 inches)
Front Suspension43mm upside-down forks
Front Travel130 mm (5.1 inches)
Rear SuspensionProgressive linkage with adjustable monoshock. Aluminium double-sided swingarm
Rear Travel140 mm (5.5 inches)
Seat
Seat Height785 mm (30.9 inches) If adjustable, lowest setting.
Alt. Seat Height810 mm (31.9 inches) If adjustable, highest setting.
Total Height1,055 mm (41.5 inches)
Total Length2,170 mm (85.4 inches)
Total Width800 mm (31.5 inches)
Ground Clearance
Wheelbase1,480 mm (58.3 inches)
Dry Weight179.5 kg (395.7 pounds)
Wet Weight205.5 kg (453.0 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. Semi-floating discs, radially mounted Monobloc Brembo M4-32 callipers, 4-pistons, axiial pump with ABS as standard
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. 2-piston floating calliper with ABS as standard equipment
Rear Brake Diameter245 mm (9.6 inches)
WheelsLight alloy, 10-spoke

Comments

It appears you're interested in specifications for the Ducati Monster 821 Stripe. This Naked bike model is powered by a L-twin V2, four-stroke engine with 821.00 ccm (50.10 cubic inches) of actual displacement before 12.8:1 compression. Fueling is metered via Injection. 53mm throttle bodies with full Ride by Wire allowing this machine to produce its 112.00 HP (81.8 kW) horsepower and 89.40 Nm (9.1 kgf-m or 65.9 ft.lbs) torque. According to our records engine heat of the Ducati Monster 821 Stripe is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Tubular steel Trellis frame attached to the cylinders head. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Semi-floating discs, radially mounted Monobloc Brembo M4-32 callipers, 4-pistons, axiial pump with ABS as standard front brakes and Single disc. 2-piston floating calliper with ABS as standard equipment rear brakes. The Ducati Monster 821 Stripe was launched in 2016, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
