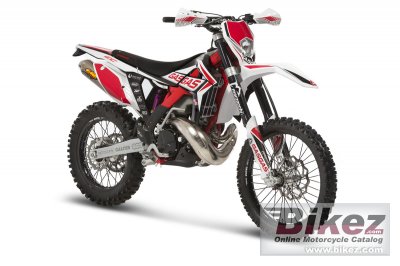

2016 GAS GAS EC 250 E Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2016 GAS GAS EC 250 E.

Basic Specs

Year2016
MakeGAS GAS
ModelGAS GAS EC 250 E
Cost

Engine

Displacement249.30 ccm (15.21 cubic inches)
TypeDirect reed valve VForce 4
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke66.4 x 72.0 mm (2.6 x 2.8 inches)
Valves/Cylinder
FuelingCarburettor. Keihin PKWS 38 mm
IgnitionElectronic
ExhaustFMF
Lubrication2-stroke-oil/fuel mixed 1:50
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchMultidisc in oil bath
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity9.50 litres (2.51 gallons)
Emissions

Chassis

Frame TypePerimeter frame in chrome-molybdenum
Rake
Trail
Front SuspensionMarzocchi Shiver invertida Ø45 mm
Front Travel305 mm (12.0 inches)
Rear SuspensionAluminium swingarm. Reiger Mono shock. Spring preload, rebound and compression high/low speed.
Rear Travel298 mm (11.7 inches)
Seat
Seat Height950 mm (37.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,260 mm (49.6 inches)
Total Length2,200 mm (86.6 inches)
Total Width830 mm (32.7 inches)
Ground Clearance
Wheelbase1,480 mm (58.3 inches)
Dry Weight104.0 kg (229.3 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre90/90-21
Rear Tire/Tyre140/80-18
Front BrakesSingle disc. Wave disc. Two-piston calipers.
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. Wave disc. Single-piston caliper.
Rear Brake Diameter220 mm (8.7 inches)
WheelsExcel Aluminium spoke rim

Comments

It appears you're interested in specifications for the GAS GAS EC 250 E. This Enduro / offroad model is powered by a Direct reed valve VForce 4 Single cylinder, two-stroke engine with 249.30 ccm (15.21 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor. Keihin PKWS 38 mm allowing this machine to produce its horsepower and torque. According to our records engine heat of the GAS GAS EC 250 E is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/90-21 and the rear is 140/80-18 . The entire package is supported by the frame, Perimeter frame in chrome-molybdenum. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Wave disc. Two-piston calipers. front brakes and Single disc. Wave disc. Single-piston caliper. rear brakes. The GAS GAS EC 250 E was launched in 2016, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Spanish made bike. Optional electric start adds 3 kg. Model also called Gas Gas EC 250/E Racing
