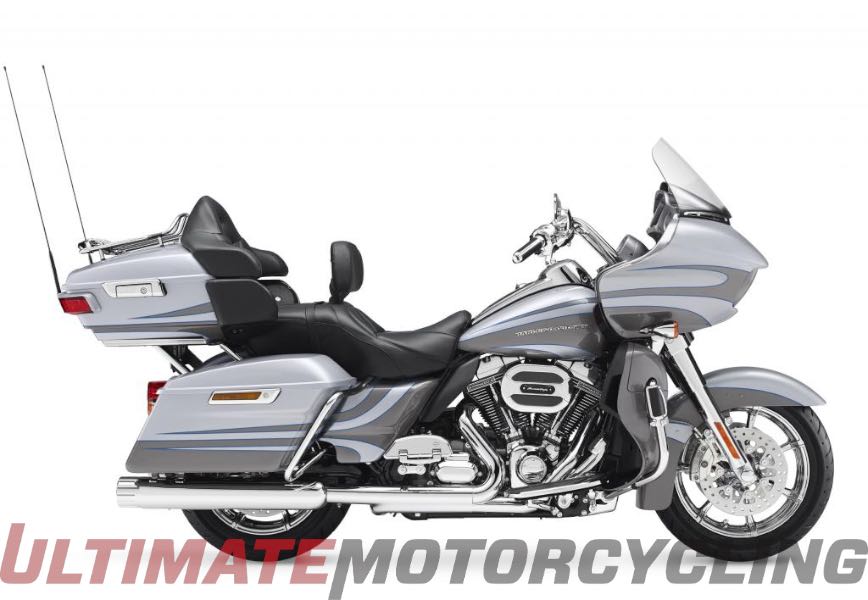

2016 Harley-Davidson CVO Road Glide Ultra Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2016 Harley-Davidson CVO Road Glide Ultra.

Basic Specs

Year2016
MakeHarley-Davidson
ModelHarley-Davidson CVO Road Glide Ultra
CostUS$ 40299. Euro 39995. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1801.00 ccm (109.90 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke101.6 x 111.1 mm (4.0 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustChrome dual exhaust with 4 in. touring mufflers and touring muffler shields
LubricationDry sump
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive

Performance

Horespower97.90 HP (71.5 kW)
Torque156.00 Nm (15.9 kgf-m or 115.1 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity22.71 litres (6.00 gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake26.0°
Trail170 mm (6.7 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height755 mm (29.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,600 mm (102.4 inches)
Total Width
Ground Clearance120 mm (4.7 inches)
Wheelbase1,625 mm (64.0 inches)
Dry Weight422.0 kg (930.4 pounds)
Wet Weight439.0 kg (967.8 pounds)

Wheels & Brakes

Front Tire/Tyre130/80-17
Rear Tire/Tyre180/65-16
Front BrakesDouble disc. ABS. 4-piston
Front Brake Diameter
Rear BrakesSingle disc. ABS. 4-piston
Rear Brake Diameter
WheelsMirror Chrome Slicer Custom Wheel

Comments

It appears you're interested in specifications for the Harley-Davidson CVO Road Glide Ultra. This Touring model is powered by a V2, four-stroke engine with 1801.00 ccm (109.90 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection allowing this machine to produce its 97.90 HP (71.5 kW) horsepower and 156.00 Nm (15.9 kgf-m or 115.1 ft.lbs) torque. According to our records engine heat of the Harley-Davidson CVO Road Glide Ultra is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 130/80-17 and the rear is 180/65-16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. 4-piston front brakes and Single disc. ABS. 4-piston rear brakes. The Harley-Davidson CVO Road Glide Ultra was launched in 2016, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Small windshield. Cruse control. Alarm.
