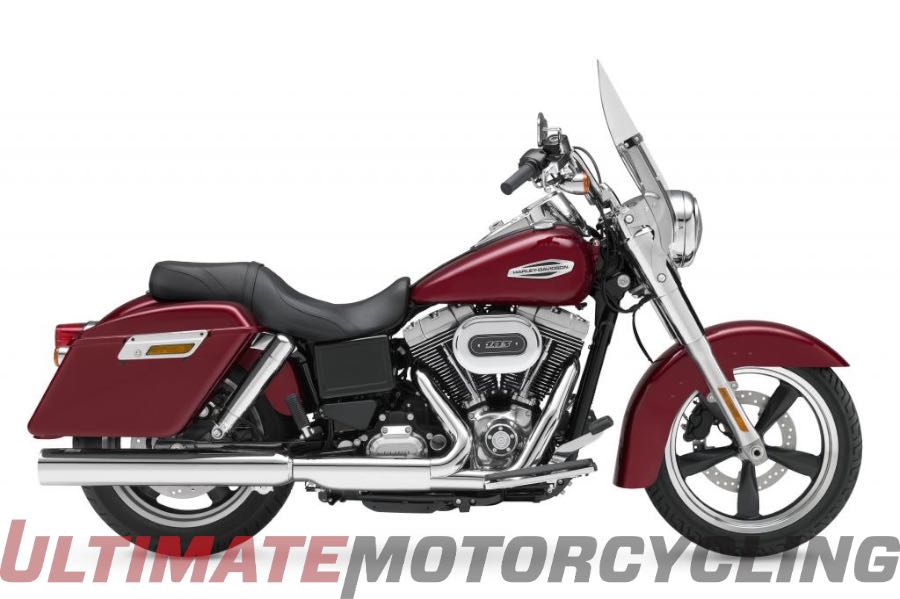

2016 Harley-Davidson Dyna Switchback Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2016 Harley-Davidson Dyna Switchback.

Basic Specs

Year2016
MakeHarley-Davidson
ModelHarley-Davidson Dyna Switchback
CostUS$ 17199. Euro 18135. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1690.00 ccm (103.12 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke98.4 x 111.3 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
Exhaust2-into-1 chrome exhaust with straight-cut muffler
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelinePrimary chain, 34/46 ratio

Performance

Horespower76.10 HP (55.5 kW)
Torque126.00 Nm (12.8 kgf-m or 92.9 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity17.79 litres (4.70 gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake29.9°
Trail148 mm (5.8 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height695 mm (27.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,360 mm (92.9 inches)
Total Width
Ground Clearance110 mm (4.3 inches)
Wheelbase1,595 mm (62.8 inches)
Dry Weight315.7 kg (696.0 pounds)
Wet Weight325.7 kg (718.0 pounds)

Wheels & Brakes

Front Tire/Tyre130/70-B18
Rear Tire/Tyre160/70-B17
Front BrakesDouble disc. 4-piston fixed. ABS.
Front Brake Diameter
Rear BrakesSingle disc. 2-piston torque-free floating.
Rear Brake Diameter
WheelsBlack, 5-Spoke Cast Aluminum

Comments

It appears you're interested in specifications for the Harley-Davidson Dyna Switchback. This Touring model is powered by a V2, four-stroke engine with 1690.00 ccm (103.12 cubic inches) of actual displacement before 9.6:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection (ESPFI) allowing this machine to produce its 76.10 HP (55.5 kW) horsepower and 126.00 Nm (12.8 kgf-m or 92.9 ft.lbs) torque. According to our records engine heat of the Harley-Davidson Dyna Switchback is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 130/70-B18 and the rear is 160/70-B17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. 4-piston fixed. ABS. front brakes and Single disc. 2-piston torque-free floating. rear brakes. The Harley-Davidson Dyna Switchback was launched in 2016, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
