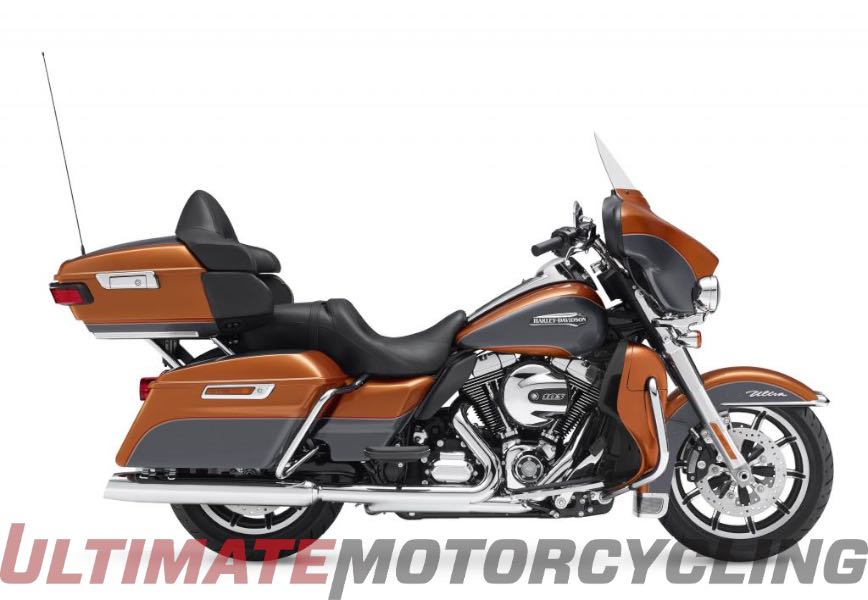

These are the known mechanical and performance specifications for your 2016 Harley-Davidson Electra Glide Ultra Classic Low.
Basic Specs
Year2016
MakeHarley-Davidson
ModelHarley-Davidson Electra Glide Ultra Classic Low
TypeTouring
CostUS$ 24699. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1687.97 ccm (103.00 cubic inches)
TypeIntegrated Oil-Cooler
DetailsV2, four-stroke
Max RPM
Compression9.7:1
Bore/Stroke98.4 x 111.3 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustChrome, 2-1-2 dual exhaust with tapered mufflers
Lubrication
CoolingOil & air
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive
Performance
Horespower87.00 HP (63.5 kW)
Torque138.00 Nm (14.1 kgf-m or 101.8 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity22.71 litres (6.00 gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake26.0°
Trail170 mm (6.7 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height686 mm (27.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,600 mm (102.4 inches)
Total Width
Ground Clearance135 mm (5.3 inches)
Wheelbase1,625 mm (64.0 inches)
Dry Weight400.1 kg (882.0 pounds)
Wet Weight413.2 kg (911.0 pounds)
Wheels & Brakes
Front Tire/Tyre130/80-17
Rear Tire/Tyre180/65-16
Front BrakesDouble disc. ABS. 4-piston
Front Brake Diameter
Rear BrakesSingle disc. ABS. 4-piston
Rear Brake Diameter
WheelsCast Aluminum
Comments
Windshield. Cruise control. Optional Alarm.
