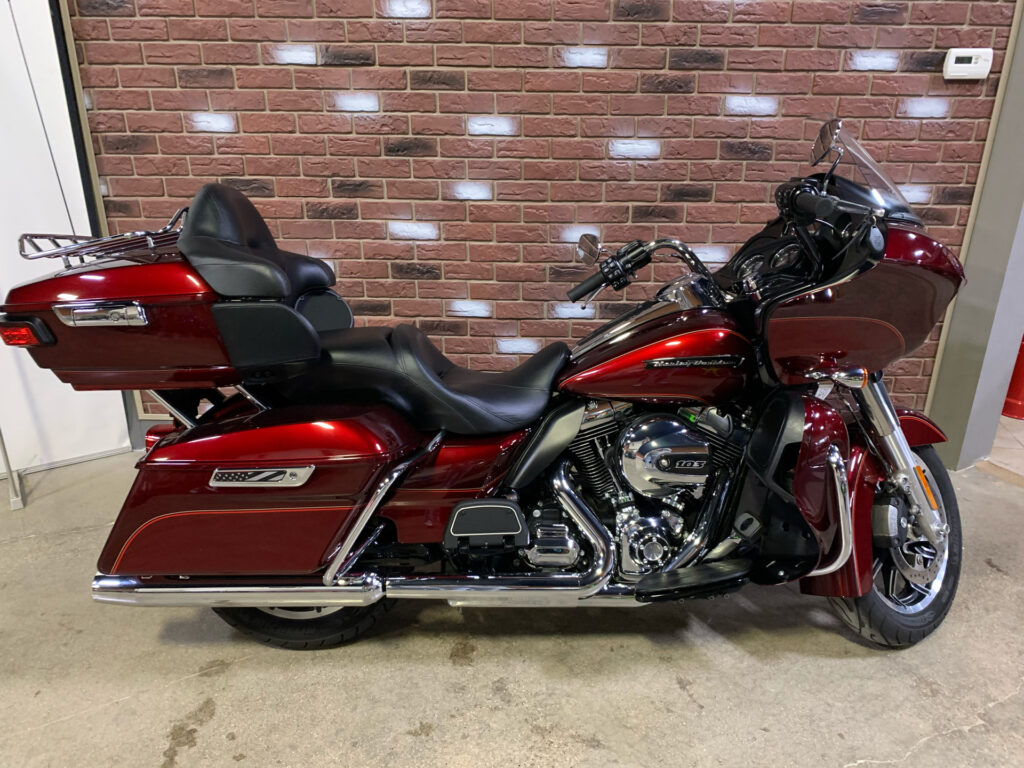

These are the known mechanical and performance specifications for your 2016 Harley-Davidson Road Glide Ultra.
Basic Specs


Year2016
MakeHarley-Davidson
ModelHarley-Davidson Road Glide Ultra
TypeTouring
CostUS$ 25699. Euro 27545. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1687.97 ccm (103.00 cubic inches)
TypeIntegrated Oil-Cooler
DetailsV2, four-stroke
Max RPM
Compression9.7:1
Bore/Stroke98.4 x 111.3 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection
Ignition
ExhaustChrome dual exhaust with 4 in. touring mufflers and touring muffler shields
LubricationDry sump
CoolingOil & air
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive
Performance
Horespower87.00 HP (63.5 kW)
Torque138.00 Nm (14.1 kgf-m or 101.8 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity22.71 litres (6.00 gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake26.0°
Trail170 mm (6.7 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height735 mm (28.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,570 mm (101.2 inches)
Total Width
Ground Clearance125 mm (4.9 inches)
Wheelbase1,625 mm (64.0 inches)
Dry Weight407.0 kg (897.3 pounds)
Wet Weight425.0 kg (937.0 pounds)
Wheels & Brakes
Front Tire/Tyre130/70-BW18
Rear Tire/Tyre180/65-BW16
Front BrakesDouble disc. ABS. 4-piston
Front Brake Diameter
Rear BrakesSingle disc. ABS. 4-piston
Rear Brake Diameter
WheelsImpeller Cast Aluminum
Comments
Small windshield. Cruse control. Alarm.
