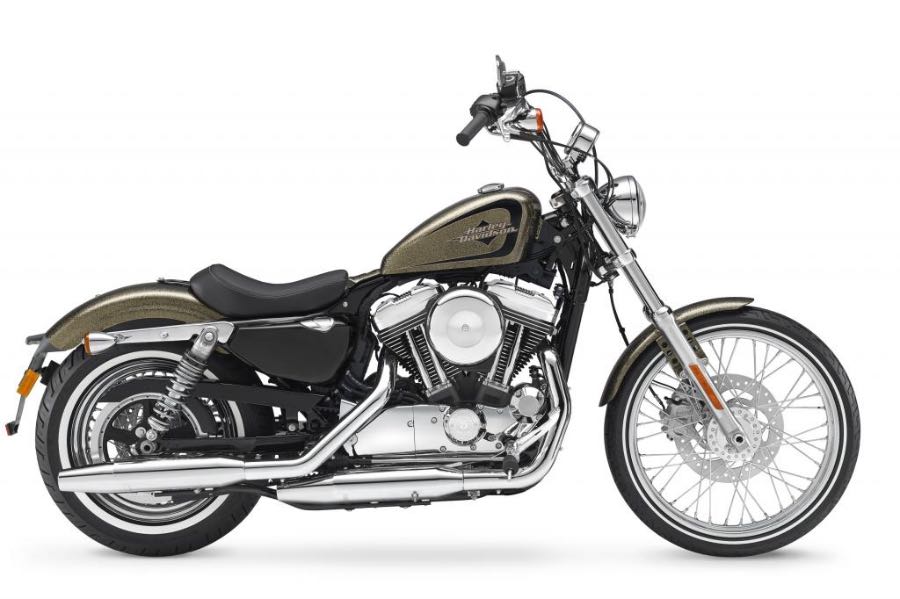

2016 Harley-Davidson Sportster Seventy-Two Dark Custom Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2016 Harley-Davidson Sportster Seventy-Two Dark Custom.

Basic Specs

Year2016
MakeHarley-Davidson
ModelHarley-Davidson Sportster Seventy-Two Dark Custom
Cost

Engine

Displacement1201.25 ccm (73.30 cubic inches)
TypeEvolution® engine
DetailsV2, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke88.9 x 96.8 mm (3.5 x 3.8 inches)
Valves/Cylinder
FuelingInjection
Ignition
ExhaustChrome dual shorty exhaust.
LubricationDry sump
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelinePrimary chain, 57/38 ratio

Performance

Horespower65.71 HP (48.0 kW)
Torque96.00 Nm (9.8 kgf-m or 70.8 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption4.90 litres/100 km (20.4 km/l or 48.00 mpg)
Fuel Capacity7.90 litres (2.09 gallons)
Emissions113.7 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake32.0°
Trail135 mm (5.3 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height730 mm (28.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,275 mm (89.6 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1,540 mm (60.6 inches)
Dry Weight251.0 kg (553.4 pounds)
Wet Weight257.0 kg (566.6 pounds)

Wheels & Brakes

Front Tire/TyreMH90-21
Rear Tire/Tyre150/80-B16
Front BrakesSingle disc. Dual-piston. Optional ABS.
Front Brake Diameter
Rear BrakesSingle disc. Single-piston. Optional ABS.
Rear Brake Diameter
WheelsCustom Whitewall Tires

Comments

It appears you're interested in specifications for the Harley-Davidson Sportster Seventy-Two Dark Custom. This Custom / cruiser model is powered by a Evolution® engine V2, four-stroke engine with 1201.25 ccm (73.30 cubic inches) of actual displacement before 10.0:1 compression. Fueling is metered via Injection allowing this machine to produce its 65.71 HP (48.0 kW) horsepower and 96.00 Nm (9.8 kgf-m or 70.8 ft.lbs) torque. According to our records engine heat of the Harley-Davidson Sportster Seventy-Two Dark Custom is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is MH90-21 and the rear is 150/80-B16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Dual-piston. Optional ABS. front brakes and Single disc. Single-piston. Optional ABS. rear brakes. The Harley-Davidson Sportster Seventy-Two Dark Custom was launched in 2016, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
