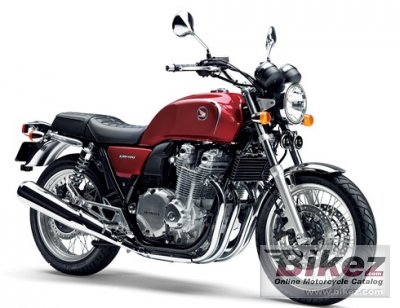

These are the known mechanical and performance specifications for your 2016 Honda CB1100 EX.
Basic Specs

Engine
Displacement1140.00 ccm (69.56 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke73.5 x 67.2 mm (2.9 x 2.6 inches)
Valves/Cylinder
FuelingInjection. PGM-FI electronic fuel injection
IgnitionDigital transistorized with electronic advance
Exhaust
Lubrication
CoolingOil & air
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchMulti-plate wet clutch
Driveline
Performance
Horespower88.51 HP (64.6 kW)
Torque91.00 Nm (9.3 kgf-m or 67.1 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption6.00 litres/100 km (16.7 km/l or 39.20 mpg)
Fuel Capacity17.50 litres (4.62 gallons)
Emissions139.2 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeDouble cradle
Rake27.0°
Trail114 mm (4.5 inches)
Front Suspension41mm fork with spring preload adjustability
Front Travel
Rear SuspensionDual shocks with spring preload adjustability
Rear Travel
Seat
Seat Height795 mm (31.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,130 mm (44.5 inches)
Total Length2,195 mm (86.4 inches)
Total Width834 mm (32.8 inches)
Ground Clearance135 mm (5.3 inches)
Wheelbase1,490 mm (58.7 inches)
Dry Weight
Wet Weight260.0 kg (573.2 pounds)
Wheels & Brakes
Front Tire/Tyre110/80-18
Rear Tire/Tyre140/70-18
Front BrakesDouble disc. Floating discs. Four-piston calipers. ABS.
Front Brake Diameter296 mm (11.7 inches)
Rear BrakesSingle disc. Single-piston. ABS.
Rear Brake Diameter256 mm (10.1 inches)
WheelsWire spoked
