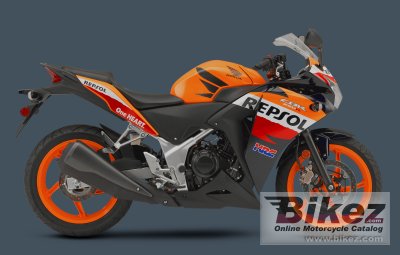

2016 Honda CBR250R Repsol Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2016 Honda CBR250R Repsol.

Basic Specs

Year2016
MakeHonda
ModelHonda CBR250R Repsol
TypeSport
CostUS$ 4599. Prices depend on country, taxes, accessories, etc.

Engine

Displacement249.60 ccm (15.23 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.7:1
Bore/Stroke76.0 x 55.0 mm (3.0 x 2.2 inches)
Valves/Cylinder4
FuelingInjection. PGM-Fi, 38mm throttle body
IgnitionComputer-controlled digital transistorized with electronic advance
Exhaust
LubricationForced pressure and wet sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet multiplate with coil springs
Driveline

Performance

Horespower34.87 HP (25.5 kW)
Torque22.90 Nm (2.3 kgf-m or 16.9 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption3.05 litres/100 km (32.8 km/l or 77.12 mpg)
Fuel Capacity12.87 litres (3.40 gallons)
Emissions70.8 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeSteel
Rake25.0°
Trail99 mm (3.9 inches)
Front Suspension37mm fork
Front Travel118 mm (4.7 inches)
Rear SuspensionPro-Link single shock with five positions of spring preload adjustability
Rear Travel103 mm (4.1 inches)
Seat
Seat Height775 mm (30.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,035 mm (80.1 inches)
Total Width
Ground Clearance
Wheelbase1,369 mm (53.9 inches)
Dry Weight
Wet Weight165.0 kg (363.8 pounds)

Wheels & Brakes

Front Tire/Tyre110/70-17
Rear Tire/Tyre140/70-17
Front BrakesSingle disc
Front Brake Diameter296 mm (11.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels5-spoke black

Comments

It appears you're interested in specifications for the Honda CBR250R Repsol. This Sport model is powered by a Single cylinder, four-stroke engine with 249.60 ccm (15.23 cubic inches) of actual displacement before 10.7:1 compression. Fueling is metered via Injection. PGM-Fi, 38mm throttle body allowing this machine to produce its 34.87 HP (25.5 kW) horsepower and 22.90 Nm (2.3 kgf-m or 16.9 ft.lbs) torque. According to our records engine heat of the Honda CBR250R Repsol is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 110/70-17 and the rear is 140/70-17 . The entire package is supported by the frame, Steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Honda CBR250R Repsol was launched in 2016, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Special edition.
