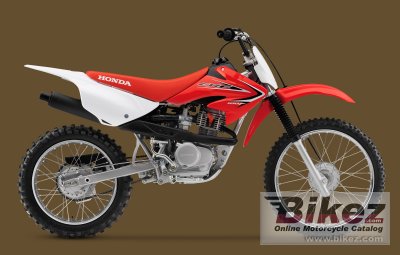

2016 Honda CRF100F Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2016 Honda CRF100F.

Basic Specs

Year2016
MakeHonda
ModelHonda CRF100F
CostUS$ 2880. Prices depend on country, taxes, accessories, etc.

Engine

Displacement99.00 ccm (6.04 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.4:1
Bore/Stroke53.0 x 45.0 mm (2.1 x 1.8 inches)
Valves/Cylinder2
FuelingCarburettor. 22mm piston-valve carburator
IgnitionCD
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch
Driveline#428 chain; 14T/50T

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity4.92 litres (1.30 gallons)
Emissions

Chassis

Frame Type
Rake28.5°
Trail99 mm (3.9 inches)
Front Suspension27.0mm leading-axle Showa® fork; 5.2-inch travel
Front Travel
Rear SuspensionPro-Link® Showa single shock; 5.8-inch travel
Rear Travel
Seat
Seat Height785 mm (30.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance251 mm (9.9 inches)
Wheelbase1,250 mm (49.2 inches)
Dry Weight
Wet Weight77.1 kg (170.0 pounds)

Wheels & Brakes

Front Tire/Tyre2.50-19
Rear Tire/Tyre3.00-16
Front BrakesExpanding brake (drum brake)
Front Brake Diameter99 mm (3.9 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter99 mm (3.9 inches)
WheelsWire spoked

Comments

It appears you're interested in specifications for the Honda CRF100F. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 99.00 ccm (6.04 cubic inches) of actual displacement before 9.4:1 compression. Fueling is metered via Carburettor. 22mm piston-valve carburator allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda CRF100F is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 2.50-19 and the rear is 3.00-16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake) front brakes and Expanding brake (drum brake) rear brakes. The Honda CRF100F was launched in 2016, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: CRF100F
