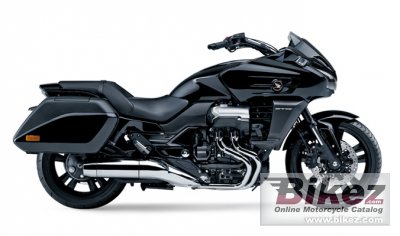

These are the known mechanical and performance specifications for your 2016 Honda CTX1300.
Basic Specs
Year2016
MakeHonda
ModelHonda CTX1300
TypeCustom / cruiser
CostUS$ 15999. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1261.00 ccm (76.95 cubic inches)
Type
DetailsV4, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke78.0 x 66.0 mm (3.1 x 2.6 inches)
Valves/Cylinder4
FuelingInjection. PGM-FI with electronic control IACV, four 36mm throttle bodies
IgnitionComputer-controlled digital with 3-D mapping and electronic advance
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline
Performance
Horespower83.14 HP (60.7 kW)
Torque106.00 Nm (10.8 kgf-m or 78.2 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity19.50 litres (5.15 gallons)
Emissions
Chassis
Frame TypeDouble cradle split down-tube
Rake28.0°
Trail118 mm (4.6 inches)
Front Suspension43mm inverted front fork (USD)
Front Travel107 mm (4.2 inches)
Rear SuspensionAluminium swingarm with double conventional shocks with mechanical preload adjustment
Rear Travel110 mm (4.3 inches)
Seat
Seat Height735 mm (28.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,170 mm (46.1 inches)
Total Length2,380 mm (93.7 inches)
Total Width940 mm (37.0 inches)
Ground Clearance130 mm (5.1 inches)
Wheelbase1,645 mm (64.8 inches)
Dry Weight
Wet Weight338.0 kg (745.2 pounds)
Wheels & Brakes
Front Tire/Tyre130/70-R18
Rear Tire/Tyre200/50-R17
Front BrakesDouble disc
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter315 mm (12.4 inches)
WheelsCast aluminum
Comments
Model ID: CTX1300
