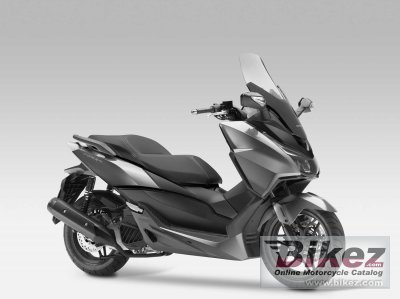

2016 Honda Forza 125 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2016 Honda Forza 125 .

Basic Specs

Year2016
MakeHonda
ModelHonda Forza 125
Cost Euro 4890. UK £ 3999. Prices depend on country, taxes, accessories, etc.

Engine

Displacement124.90 ccm (7.62 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.5:1
Bore/Stroke52.4 x 57.9 mm (2.1 x 2.3 inches)
Valves/Cylinder
FuelingInjection. PGM-FI electronic fuel injection
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

GearboxAutomatic
Final DriveBelt
ClutchDry, internal expanding
DrivelineV-belt

Performance

Horespower14.08 HP (10.3 kW)
Torque12.00 Nm (1.2 kgf-m or 8.9 ft.lbs)
Top Speed108.0 km/h (67.1 mph)

Fuel Economy & Polution

Fuel Consumption1.91 litres/100 km (52.4 km/l or 123.15 mpg)
Fuel Capacity11.50 litres (3.04 gallons)
Emissions44.3 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeTubular steel underbone
Rake27.0°
Trail89 mm (3.5 inches)
Front SuspensionTelescopic
Front Travel
Rear SuspensionTwin
Rear Travel
SeatTwo-person seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,452 mm (57.2 inches)
Total Length2,134 mm (84.0 inches)
Total Width748 mm (29.4 inches)
Ground Clearance148 mm (5.8 inches)
Wheelbase1,490 mm (58.7 inches)
Dry Weight
Wet Weight162.0 kg (357.1 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-15
Rear Tire/Tyre140/70-14
Front BrakesSingle disc. ABS.
Front Brake Diameter256 mm (10.1 inches)
Rear BrakesSingle disc. ABS.
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda Forza 125 . This Scooter model is powered by a Single cylinder, four-stroke engine with 124.90 ccm (7.62 cubic inches) of actual displacement before 11.5:1 compression. Fueling is metered via Injection. PGM-FI electronic fuel injection allowing this machine to produce its 14.08 HP (10.3 kW) horsepower and 12.00 Nm (1.2 kgf-m or 8.9 ft.lbs) torque. According to our records engine heat of the Honda Forza 125 is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/70-15 and the rear is 140/70-14 . The entire package is supported by the frame, Tubular steel underbone. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. ABS. front brakes and Single disc. ABS. rear brakes. The Honda Forza 125 was launched in 2016, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
