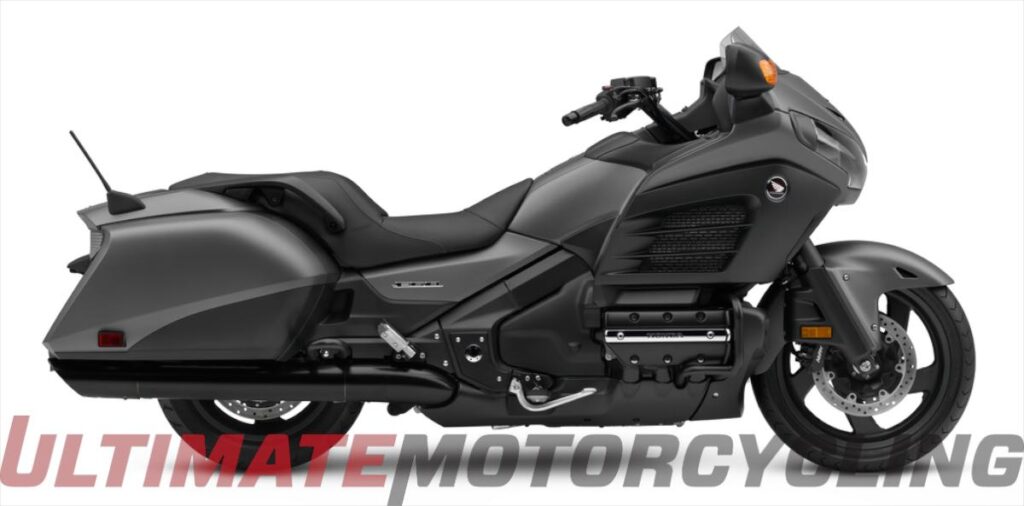

These are the known mechanical and performance specifications for your 2016 Honda Gold Wing F6B.
Basic Specs


Year2016
MakeHonda
ModelHonda Gold Wing F6B
TypeTouring
CostUS$ 20499. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1832.00 ccm (111.79 cubic inches)
Type
DetailsSix cylinder boxer, four-stroke
Max RPM
Compression9.8:1
Bore/Stroke74.0 x 71.0 mm (2.9 x 2.8 inches)
Valves/Cylinder2
FuelingInjection. PGM-FI
IgnitionComputer-controlled digital with 3-D mapping
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline
Performance
Horespower116.67 HP (85.2 kW)
Torque167.00 Nm (17.0 kgf-m or 123.2 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption6.92 litres/100 km (14.5 km/l or 33.99 mpg)
Fuel Capacity23.50 litres (6.21 gallons)
Emissions160.5 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeDiamond; triple-box-section aluminium twin-spar
Rake29.5°
Trail114 mm (4.5 inches)
Front Suspension45mm cartridge fork with anti-dive system
Front Travel122 mm (4.8 inches)
Rear SuspensionPro Arm® single-side swingarm with Pro-Link® single shock with remote-controlled spring preload adjustment, 4.1 inches travel
Rear Travel
Seat
Seat Height739 mm (29.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,154 mm (45.4 inches)
Total Length2,473 mm (97.4 inches)
Total Width942 mm (37.1 inches)
Ground Clearance
Wheelbase1,707 mm (67.2 inches)
Dry Weight
Wet Weight381.9 kg (842.0 pounds)
Wheels & Brakes
Front Tire/Tyre130/70-R18
Rear Tire/Tyre180/60-R16
Front BrakesDouble disc. Floating discs. CBS three-piston calipers.
Front Brake Diameter296 mm (11.7 inches)
Rear BrakesSingle disc. CBS three-piston calipers.
Rear Brake Diameter316 mm (12.4 inches)
Wheels
Comments
Model ID: GL1800B
