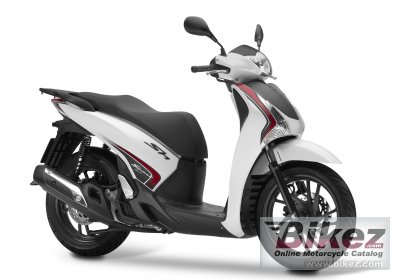

2016 Honda SH150i Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2016 Honda SH150i.

Basic Specs

Year2016
MakeHonda
ModelHonda SH150i
CostUS$ 4499. Prices depend on country, taxes, accessories, etc.

Engine

Displacement153.00 ccm (9.34 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke58.0 x 57.8 mm (2.3 x 2.3 inches)
Valves/Cylinder
FuelingInjection. Programmed Fuel Injection (PGM-FI) with automatic enricher circuit
IgnitionDigital transistorized with electronic advance
Exhaust
Lubrication
CoolingLiquid

Drivetrain

GearboxAutomatic
Final DriveBelt
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption2.58 litres/100 km (38.8 km/l or 91.17 mpg)
Fuel Capacity7.20 litres (1.90 gallons)
Emissions59.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeUnderbone, steel tube
Rake26.0°
Trail85 mm (3.3 inches)
Front Suspension33mm hydraulic fork
Front Travel89 mm (3.5 inches)
Rear SuspensionSwingarm with dual hydraulic shocks, spring-preload adjustability
Rear Travel84 mm (3.3 inches)
Seat
Seat Height785 mm (30.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,356 mm (53.4 inches)
Dry Weight
Wet Weight137.0 kg (302.0 pounds)

Wheels & Brakes

Front Tire/Tyre100/80-16
Rear Tire/Tyre120/80-16
Front BrakesSingle disc. Two-piston calipers.
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter130 mm (5.1 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda SH150i. This Scooter model is powered by a Single cylinder, four-stroke engine with 153.00 ccm (9.34 cubic inches) of actual displacement before 11.0:1 compression. Fueling is metered via Injection. Programmed Fuel Injection (PGM-FI) with automatic enricher circuit allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda SH150i is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 100/80-16 and the rear is 120/80-16 . The entire package is supported by the frame, Underbone, steel tube. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Two-piston calipers. front brakes and Expanding brake (drum brake) rear brakes. The Honda SH150i was launched in 2016, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: SH150i
