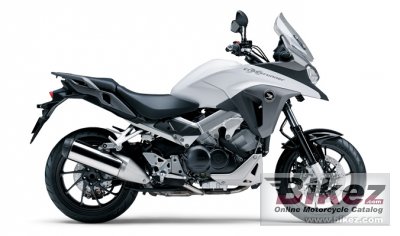

These are the known mechanical and performance specifications for your 2016 Honda VFR800X.
Basic Specs
Engine
Displacement782.00 ccm (47.72 cubic inches)
Type90 degree V-4
DetailsV4, four-stroke
Max RPM
Compression11.8:1
Bore/Stroke72.0 x 48.0 mm (2.8 x 1.9 inches)
Valves/Cylinder4
FuelingInjection. PGM-FI electronic fuel injection
IgnitionComputer-controlled digital transistorised with electronic advance
ExhaustTransmission
Lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchWet, multiplate with coil springs
DrivelineO-ring sealed chain
Performance
Horespower107.00 HP (78.1 kW)
Torque75.10 Nm (7.7 kgf-m or 55.4 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity20.80 litres (5.50 gallons)
Emissions
Chassis
Frame TypeDiamond; triple-box-section aluminium twin-spar. Swing arm: 548mm.
Rake26.5°
Trail103 mm (4.1 inches)
Front Suspension43mm HMAS cartridge-type telescopic fork with stepless preload and ten DF adjustment, 108mm axle travel
Front Travel145 mm (5.7 inches)
Rear SuspensionPro-Link with gas-charged HMAS damper, 7-step (stepless remote-controlled hydraulic) preload and stepless rebound damping adjustment, 120mm axle travel
Rear Travel148 mm (5.8 inches)
Seat
Seat Height815 mm (32.1 inches) If adjustable, lowest setting.
Alt. Seat Height835 mm (32.9 inches) If adjustable, highest setting.
Total Height1,360 mm (53.5 inches)
Total Length2,190 mm (86.2 inches)
Total Width870 mm (34.3 inches)
Ground Clearance165 mm (6.5 inches)
Wheelbase1,475 mm (58.1 inches)
Dry Weight
Wet Weight242.0 kg (533.5 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. ABS. Floating discs. Hydraulic. Four-piston calipers.
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. ABS. Hydraulic. Two-piston calipers.
Rear Brake Diameter256 mm (10.1 inches)
Wheels10-spoke diecast aluminium
