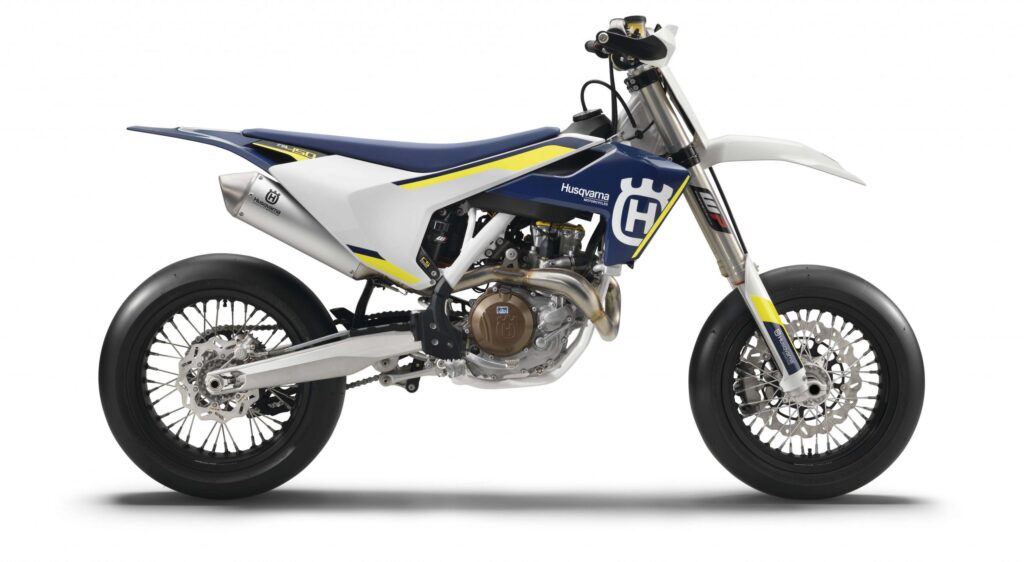

These are the known mechanical and performance specifications for your 2016 Husqvarna FS 450.
Basic Specs
Engine
Displacement449.30 ccm (27.42 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke95.0 x 63.4 mm (3.7 x 2.5 inches)
Valves/Cylinder
Fueling
IgnitionKeihin EMS
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchAPTC(TM) slipper clutch, hydraulically actuated
Driveline5/8 x 1/4 in. chain
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity9.50 litres (2.51 gallons)
Emissions
Chassis
Frame TypeChrome-molybdenum steel tubular space frame, powder-coated
Rake26.5°
Trail
Front SuspensionWP USD closed cartridge Ø 48 mm
Front Travel
Rear SuspensionWP shock absorber with linkage
Rear Travel
Seat
Seat Height927 mm (36.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,260 mm (89.0 inches)
Total Width
Ground Clearance290 mm (11.4 inches)
Wheelbase1,475 mm (58.1 inches)
Dry Weight110.0 kg (242.5 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre90/90-17
Rear Tire/Tyre140/90-17
Front BrakesSingle disc. Brembo four-piston radial fixed calliper
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. Brembo single-piston floating calliper
Rear Brake Diameter266 mm (10.5 inches)
Wheels
