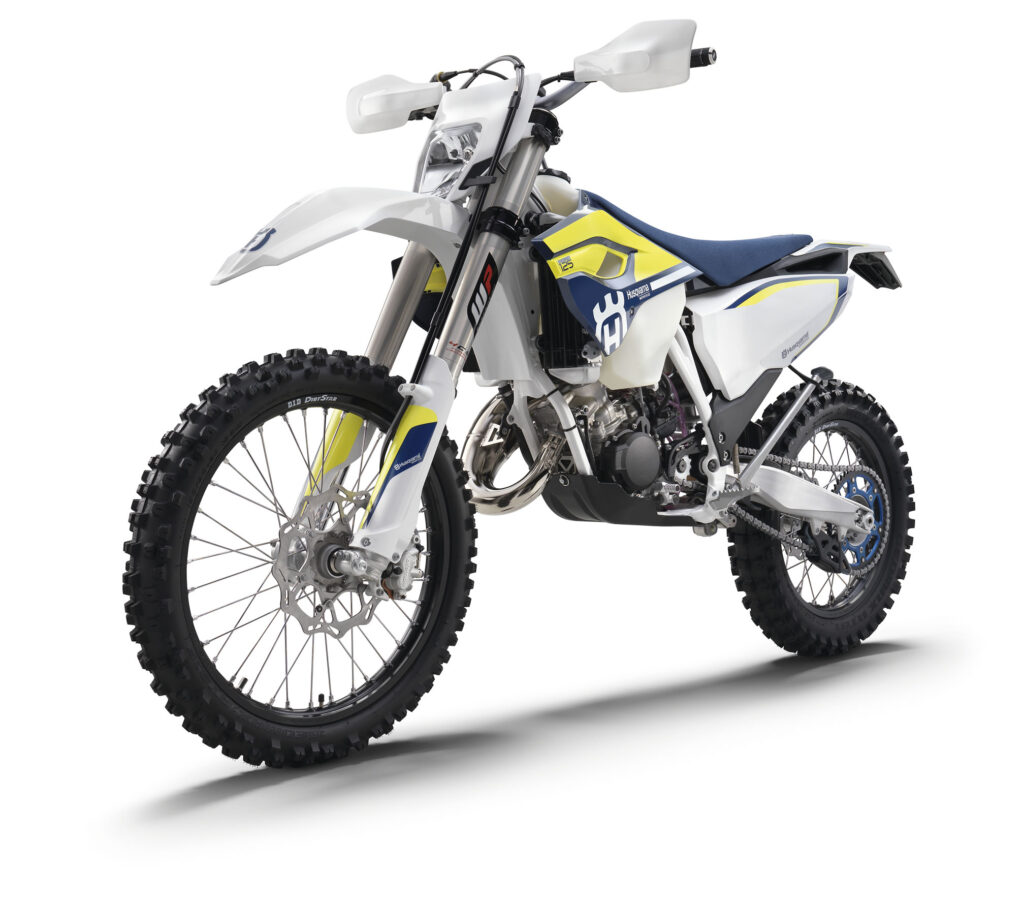

2016 Husqvarna TE 125 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2016 Husqvarna TE 125.

Basic Specs

Year2016
MakeHusqvarna
ModelHusqvarna TE 125
Cost

Engine

Displacement124.80 ccm (7.62 cubic inches)
TypeReed intake.
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke54.0 x 54.5 mm (2.1 x 2.1 inches)
Valves/Cylinder
FuelingCarburettor. Keihin 29 mm
IgnitionKokusan EMS
Exhaust
LubricationMixture oil lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet, multi-disc clutch, Magura hydraulics
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity9.50 litres (2.51 gallons)
Emissions

Chassis

Frame Type25CrMo4 steel central-tube
Rake26.5°
Trail
Front SuspensionWP USD Ø 48 mm 4CS closed cartridge
Front Travel300 mm (11.8 inches)
Rear SuspensionWP shock absorber with linkage
Rear Travel330 mm (13.0 inches)
Seat
Seat Height960 mm (37.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,230 mm (48.4 inches)
Total Length2,235 mm (88.0 inches)
Total Width
Ground Clearance355 mm (14.0 inches)
Wheelbase1,471 mm (57.9 inches)
Dry Weight96.0 kg (211.6 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre90/90-21
Rear Tire/Tyre120/80-18
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Husqvarna TE 125. This Enduro / offroad model is powered by a Reed intake. Single cylinder, two-stroke engine with 124.80 ccm (7.62 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor. Keihin 29 mm allowing this machine to produce its horsepower and torque. According to our records engine heat of the Husqvarna TE 125 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/90-21 and the rear is 120/80-18 . The entire package is supported by the frame, 25CrMo4 steel central-tube. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Husqvarna TE 125 was launched in 2016, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
