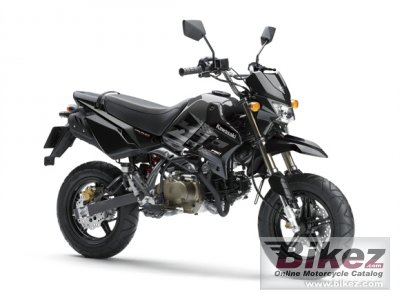

2016 Kawasaki KSR PRO Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2016 Kawasaki KSR PRO.

Basic Specs

Year2016
MakeKawasaki
ModelKawasaki KSR PRO
Cost

Engine

Displacement111.00 ccm (6.77 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke53.0 x 50.6 mm (2.1 x 2.0 inches)
Valves/Cylinder2
FuelingCarburettor. Keihin PB18
IgnitionDigital DC-CDI
Exhaust
LubricationWet sump
CoolingLiquid

Drivetrain

Gearbox4-speed
Final DriveChain
ClutchWet, multi-disc
Driveline

Performance

Horespower8.70 HP (6.4 kW)
Torque8.40 Nm (0.9 kgf-m or 6.2 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity7.30 litres (1.93 gallons)
Emissions

Chassis

Frame TypeBackbone tube
Rake26.0°
Trail
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionSwing arm (uni-track)
Rear Travel
Seat
Seat Height750 mm (29.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,020 mm (40.2 inches)
Total Length1,795 mm (70.7 inches)
Total Width740 mm (29.1 inches)
Ground Clearance225 mm (8.9 inches)
Wheelbase1,170 mm (46.1 inches)
Dry Weight94.0 kg (207.2 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre100/90-12
Rear Tire/Tyre100/90-12
Front BrakesSingle disc
Front Brake Diameter200 mm (7.9 inches)
Rear BrakesSingle disc
Rear Brake Diameter184 mm (7.2 inches)
Wheels

Comments

It appears you're interested in specifications for the Kawasaki KSR PRO. This Minibike, sport model is powered by a Single cylinder, four-stroke engine with 111.00 ccm (6.77 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor. Keihin PB18 allowing this machine to produce its 8.70 HP (6.4 kW) horsepower and 8.40 Nm (0.9 kgf-m or 6.2 ft.lbs) torque. According to our records engine heat of the Kawasaki KSR PRO is moderated by Liquid. You'll need to get familiar with the 4-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 100/90-12 and the rear is 100/90-12 . The entire package is supported by the frame, Backbone tube. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Kawasaki KSR PRO was launched in 2016, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Supermotard minibike.
