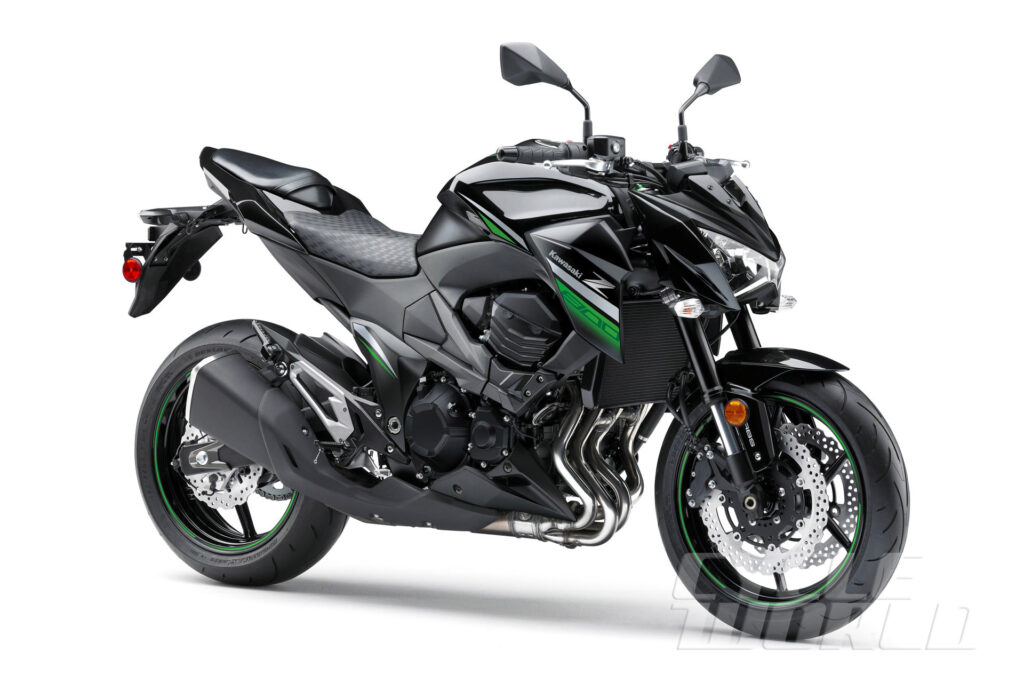

2016 Kawasaki Z800 ABS Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2016 Kawasaki Z800 ABS.

Basic Specs

Year2016
MakeKawasaki
ModelKawasaki Z800 ABS
CostUS$ 8399. Euro 8895. Prices depend on country, taxes, accessories, etc.

Engine

Displacement806.00 ccm (49.18 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression11.9:1
Bore/Stroke71.0 x 50.9 mm (2.8 x 2.0 inches)
Valves/Cylinder4
FuelingInjection. 34 mm x 4 Mikuni with dual throttle valves
IgnitionDigital
Exhaust
LubricationForced lubrication, wet sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet multi-disc, manual
DrivelineSealed chain

Performance

Horespower113.00 HP (82.5 kW)
Torque83.00 Nm (8.5 kgf-m or 61.2 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.00 litres (4.49 gallons)
Emissions

Chassis

Frame TypeTubular backbone (with engine sub-frame), high-tensile steel
Rake31.0°
Trail
Front Suspension41 mm inverted fork with rebound damping and spring preload adjustability
Front Travel
Rear SuspensionBottom-Link Uni-Trak, gas-charged shock with piggyback reservoir and stepless rebound damping and preload adjustability
Rear Travel
Seat
Seat Height834 mm (32.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,050 mm (41.3 inches)
Total Length2,100 mm (82.7 inches)
Total Width800 mm (31.5 inches)
Ground Clearance150 mm (5.9 inches)
Wheelbase1,445 mm (56.9 inches)
Dry Weight
Wet Weight229.0 kg (504.9 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. Floating discs. ABS.
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. Single-piston caliper. ABS.
Rear Brake Diameter250 mm (9.8 inches)
WheelsDunlop Sportmax tires

Comments

It appears you're interested in specifications for the Kawasaki Z800 ABS. This Naked bike model is powered by a In-line four, four-stroke engine with 806.00 ccm (49.18 cubic inches) of actual displacement before 11.9:1 compression. Fueling is metered via Injection. 34 mm x 4 Mikuni with dual throttle valves allowing this machine to produce its 113.00 HP (82.5 kW) horsepower and 83.00 Nm (8.5 kgf-m or 61.2 ft.lbs) torque. According to our records engine heat of the Kawasaki Z800 ABS is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Tubular backbone (with engine sub-frame), high-tensile steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Floating discs. ABS. front brakes and Single disc. Single-piston caliper. ABS. rear brakes. The Kawasaki Z800 ABS was launched in 2016, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
