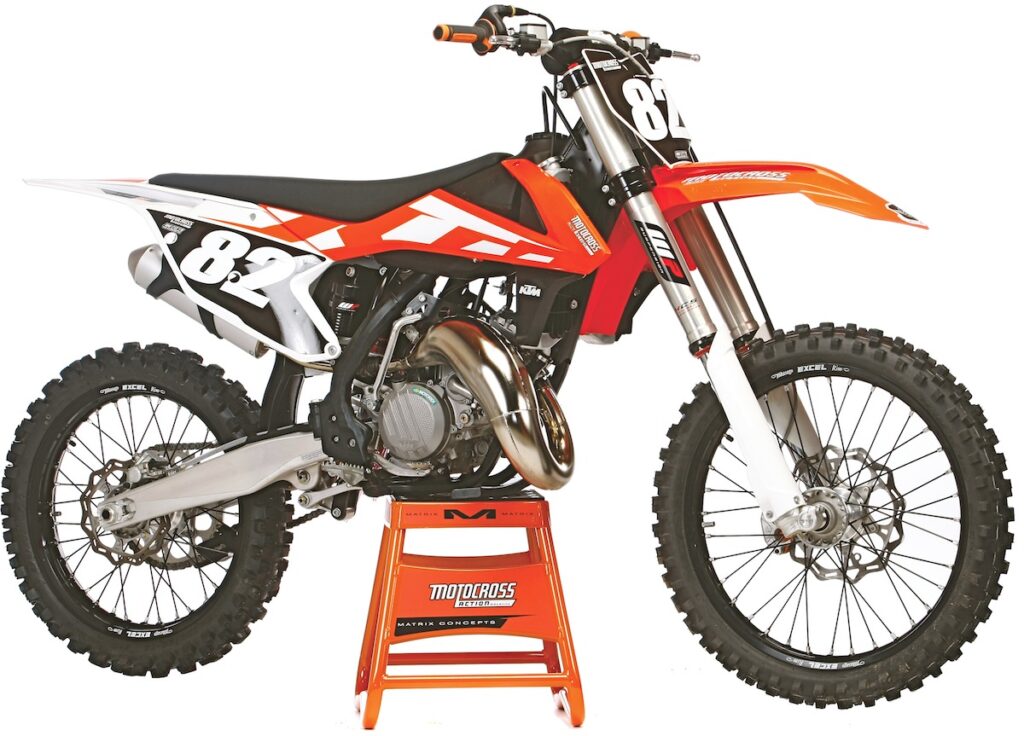

2016 KTM 150 SX Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2016 KTM 150 SX.

Basic Specs

Year2016
MakeKTM
ModelKTM 150 SX
Cost

Engine

Displacement143.90 ccm (8.78 cubic inches)
TypeReed intake.
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke58.0 x 54.5 mm (2.3 x 2.1 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionContactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchMulti-plate clutch, Brembo hydraulics
Driveline14:50. Primary drive: 23:73.

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity7.00 litres (1.85 gallons)
Emissions

Chassis

Frame TypeCentral tube frame made of chrome molybdenum steel tubing
Rake26.1°
Trail
Front SuspensionWP-USD, AER 48, Ø 48 mm
Front Travel300 mm (11.8 inches)
Rear SuspensionWP shock absorber with linkage
Rear Travel300 mm (11.8 inches)
Seat
Seat Height960 mm (37.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance375 mm (14.8 inches)
Wheelbase1,485 mm (58.5 inches)
Dry Weight87.8 kg (193.6 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc. Four-piston calipers.
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. Two-piston calipers.
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the KTM 150 SX. This Cross / motocross model is powered by a Reed intake. Single cylinder, two-stroke engine with 143.90 ccm (8.78 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor allowing this machine to produce its horsepower and torque. According to our records engine heat of the KTM 150 SX is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is and the rear is . The entire package is supported by the frame, Central tube frame made of chrome molybdenum steel tubing. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Four-piston calipers. front brakes and Single disc. Two-piston calipers. rear brakes. The KTM 150 SX was launched in 2016, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
