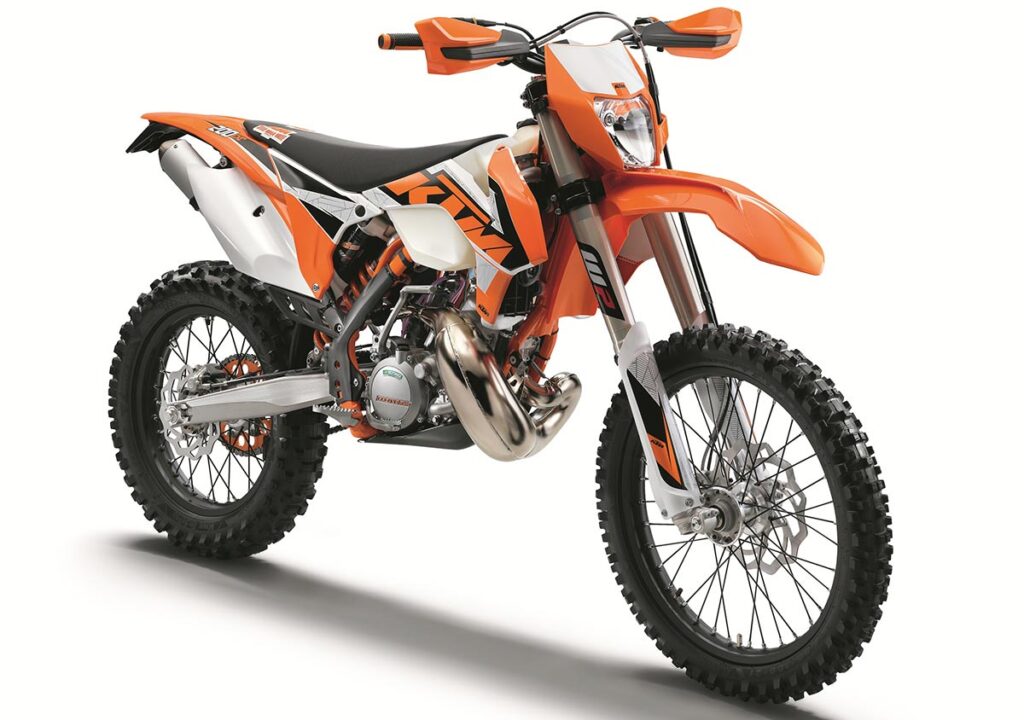

These are the known mechanical and performance specifications for your 2016 KTM 200 EXC.
Basic Specs
Engine
Displacement193.00 ccm (11.78 cubic inches)
TypeReed intake.
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke64.0 x 60.0 mm (2.5 x 2.4 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionContactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchWet, multi-disc clutch, Magura hydraulics
Driveline14:45. Primary drive: 23:73.
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity9.50 litres (2.51 gallons)
Emissions
Chassis
Frame TypeChrome-molybdenum steel central-tube
Rake26.5°
Trail
Front SuspensionWP USD Ø 48 mm
Front Travel300 mm (11.8 inches)
Rear SuspensionWP PDS shock absorber
Rear Travel335 mm (13.2 inches)
Seat
Seat Height960 mm (37.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance355 mm (14.0 inches)
Wheelbase1,471 mm (57.9 inches)
Dry Weight99.5 kg (219.4 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels
