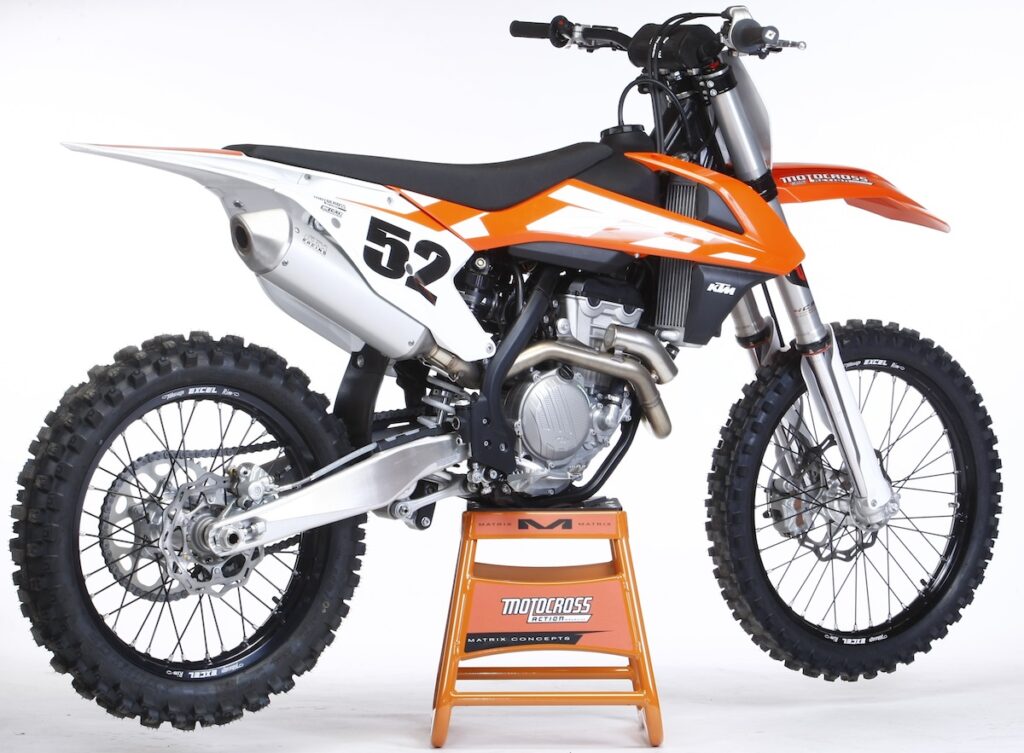

2016 KTM 350 SX-F Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2016 KTM 350 SX-F.

Basic Specs

Year2016
MakeKTM
ModelKTM 350 SX-F
Cost

Engine

Displacement349.70 ccm (21.34 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression14.0:1
Bore/Stroke88.0 x 57.5 mm (3.5 x 2.3 inches)
Valves/Cylinder
Fueling
IgnitionKeihin EMS
Exhaust
LubricationForced oil lubrication with 2 Eaton pumps
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch
Driveline5/8 x 1/4

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity7.00 litres (1.85 gallons)
Emissions

Chassis

Frame Type25CrMo4 steel central-tube
Rake26.5°
Trail
Front SuspensionWP-USD, AER 48, Ø 48 mm
Front Travel300 mm (11.8 inches)
Rear SuspensionWP shock absorber with linkage
Rear Travel300 mm (11.8 inches)
Seat
Seat Height960 mm (37.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance370 mm (14.6 inches)
Wheelbase1,485 mm (58.5 inches)
Dry Weight99.7 kg (219.8 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the KTM 350 SX-F. This Cross / motocross model is powered by a Single cylinder, four-stroke engine with 349.70 ccm (21.34 cubic inches) of actual displacement before 14.0:1 compression. Fueling is metered via allowing this machine to produce its horsepower and torque. According to our records engine heat of the KTM 350 SX-F is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is and the rear is . The entire package is supported by the frame, 25CrMo4 steel central-tube. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The KTM 350 SX-F was launched in 2016, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
