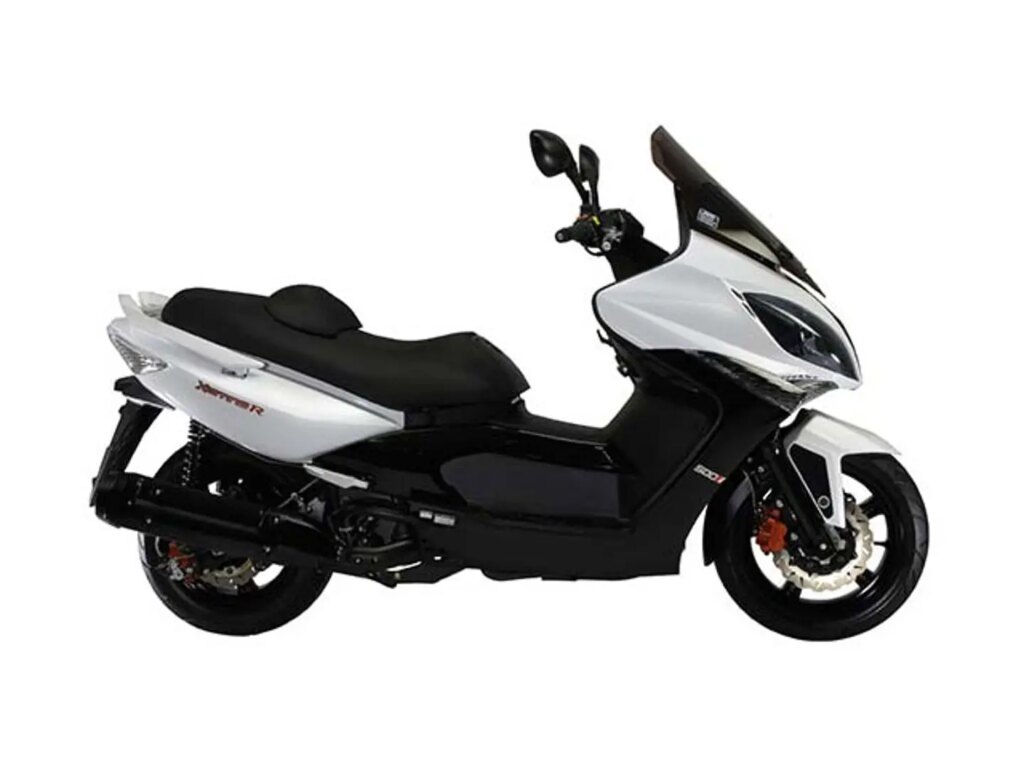

2016 Kymco Xciting 500i ABS Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2016 Kymco Xciting 500i ABS.

Basic Specs

Year2016
MakeKymco
ModelKymco Xciting 500i ABS
Cost

Engine

Displacement498.50 ccm (30.42 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke92.0 x 75.0 mm (3.6 x 3.0 inches)
Valves/Cylinder
FuelingInjection. EFI
IgnitionElectric
Exhaust
Lubrication
CoolingLiquid

Drivetrain

GearboxAutomatic
Final DriveBelt
Clutch
DrivelineCVT

Performance

Horespower37.80 HP (27.6 kW)
Torque41.36 Nm (4.2 kgf-m or 30.5 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption5.47 litres/100 km (18.3 km/l or 43.00 mpg)
Fuel Capacity12.79 litres (3.38 gallons)
Emissions126.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeSteel
Rake
Trail
Front SuspensionTelescopic Forks, Upper and Lower Triple Tree
Front Travel
Rear Suspension5 Position Adjustable Dual Shocks
Rear Travel
Seat
Seat Height768 mm (30.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,334 mm (52.5 inches)
Total Length2,248 mm (88.5 inches)
Total Width813 mm (32.0 inches)
Ground Clearance
Wheelbase1,570 mm (61.8 inches)
Dry Weight209.6 kg (462.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-15
Rear Tire/Tyre150/70-14
Front BrakesDouble disc. ABS
Front Brake Diameter
Rear BrakesSingle disc. ABS
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Kymco Xciting 500i ABS. This Scooter model is powered by a Single cylinder, four-stroke engine with 498.50 ccm (30.42 cubic inches) of actual displacement before compression. Fueling is metered via Injection. EFI allowing this machine to produce its 37.80 HP (27.6 kW) horsepower and 41.36 Nm (4.2 kgf-m or 30.5 ft.lbs) torque. According to our records engine heat of the Kymco Xciting 500i ABS is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/70-15 and the rear is 150/70-14 . The entire package is supported by the frame, Steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS front brakes and Single disc. ABS rear brakes. The Kymco Xciting 500i ABS was launched in 2016, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Integrated Sport Styled Tinted Windshield. Cell Phone Holder with 12V DC Adapter.
