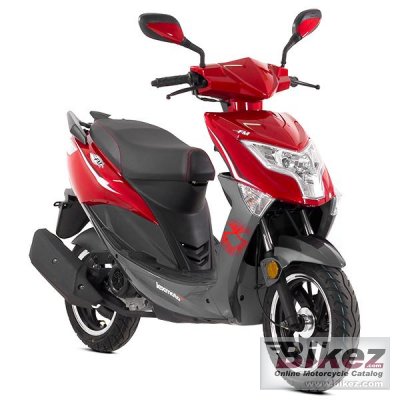

2016 Lexmoto FM 50 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2016 Lexmoto FM 50.

Basic Specs

Year2016
MakeLexmoto
ModelLexmoto FM 50
Cost

Engine

Displacement49.60 ccm (3.03 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.5:1
Bore/Stroke39.0 x 41.5 mm (1.5 x 1.6 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionCDI
Exhaust
Lubrication
CoolingAir

Drivetrain

GearboxAutomatic
Final DriveBelt
Clutch
DrivelineTwist and go

Performance

Horespower2.88 HP (2.1 kW)
Torque2.95 Nm (0.3 kgf-m or 2.2 ft.lbs)
Top Speed45.0 km/h (28.0 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity4.50 litres (1.19 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionSingle shock absorbers
Rear Travel
Seat
Seat Height830 mm (32.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,095 mm (43.1 inches)
Total Length1,760 mm (69.3 inches)
Total Width620 mm (24.4 inches)
Ground Clearance
Wheelbase1,270 mm (50.0 inches)
Dry Weight85.0 kg (187.4 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre110/70-12
Rear Tire/Tyre110/70-12
Front BrakesSingle disc. Hydraulic
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Lexmoto FM 50. This Scooter model is powered by a Single cylinder, four-stroke engine with 49.60 ccm (3.03 cubic inches) of actual displacement before 10.5:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 2.88 HP (2.1 kW) horsepower and 2.95 Nm (0.3 kgf-m or 2.2 ft.lbs) torque. According to our records engine heat of the Lexmoto FM 50 is moderated by Air. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 110/70-12 and the rear is 110/70-12 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Hydraulic front brakes and Expanding brake (drum brake) rear brakes. The Lexmoto FM 50 was launched in 2016, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Chinese scooter.
