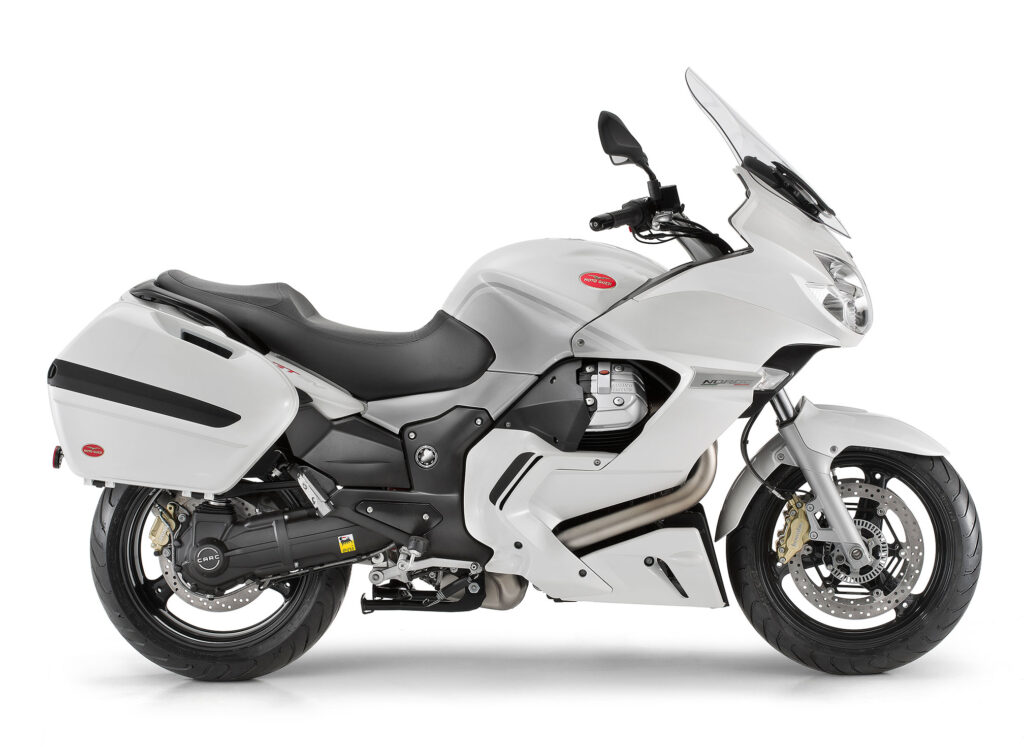

2016 Moto Guzzi Norge GT 8V Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2016 Moto Guzzi Norge GT 8V.

Basic Specs

Year2016
MakeMoto Guzzi
ModelMoto Guzzi Norge GT 8V
CostUS$ 16290. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1151.00 ccm (70.23 cubic inches)
Type90° V-Twin,
DetailsV2, four-stroke
Max RPM
Compression9.8:1
Bore/Stroke95.0 x 81.2 mm (3.7 x 3.2 inches)
Valves/Cylinder4
FuelingInjection. Magneti Marelli IAW5A, and #945;-n type; 2 Ø 45 mm throttle bodies, Weber IWP 162 injectors, Lambda control, twin spark ignition
Ignition
ExhaustStainless steel with central equalizer and with 3-way catalytic converter with two Lambda probes (Euro 3)
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchDry plate
DrivelineCARC compact reactive cardan shaft drive system; double cardan joint and floating bevel gear set, drive ratio 12/44 = 1 : 3.666

Performance

Horespower102.00 HP (74.5 kW)
Torque104.00 Nm (10.6 kgf-m or 76.7 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity23.00 litres (6.08 gallons)
Emissions

Chassis

Frame TypeTubular cradle, high tensile steel
Rake
Trail
Front SuspensionTelescopic hydraulic fork with 45 mm stanchions and adjustable spring preload
Front Travel120 mm (4.7 inches)
Rear SuspensionSingle arm suspension with progressive linkage, rear shock absorber adjustable in rebound and pre-load (hydraulic)
Rear Travel140 mm (5.5 inches)
Seat
Seat Height810 mm (31.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,125 mm (44.3 inches)
Total Length2,195 mm (86.4 inches)
Total Width870 mm (34.3 inches)
Ground Clearance185 mm (7.3 inches)
Wheelbase1,495 mm (58.9 inches)
Dry Weight257.0 kg (566.6 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. ABS. Stainless steel floating discs and callipers with 4 horizontally opposed pistons - ABS
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS. Stainless steel fixed disc, floating calliper with 2 parallel pistons - ABS
Rear Brake Diameter282 mm (11.1 inches)
WheelsThree spokes, light alloy wheels, gravity casting

Comments

It appears you're interested in specifications for the Moto Guzzi Norge GT 8V. This Sport touring model is powered by a 90° V-Twin, V2, four-stroke engine with 1151.00 ccm (70.23 cubic inches) of actual displacement before 9.8:1 compression. Fueling is metered via Injection. Magneti Marelli IAW5A, and #945;-n type; 2 Ø 45 mm throttle bodies, Weber IWP 162 injectors, Lambda control, twin spark ignition allowing this machine to produce its 102.00 HP (74.5 kW) horsepower and 104.00 Nm (10.6 kgf-m or 76.7 ft.lbs) torque. According to our records engine heat of the Moto Guzzi Norge GT 8V is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Tubular cradle, high tensile steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. Stainless steel floating discs and callipers with 4 horizontally opposed pistons - ABS front brakes and Single disc. ABS. Stainless steel fixed disc, floating calliper with 2 parallel pistons - ABS rear brakes. The Moto Guzzi Norge GT 8V was launched in 2016, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Windshield
