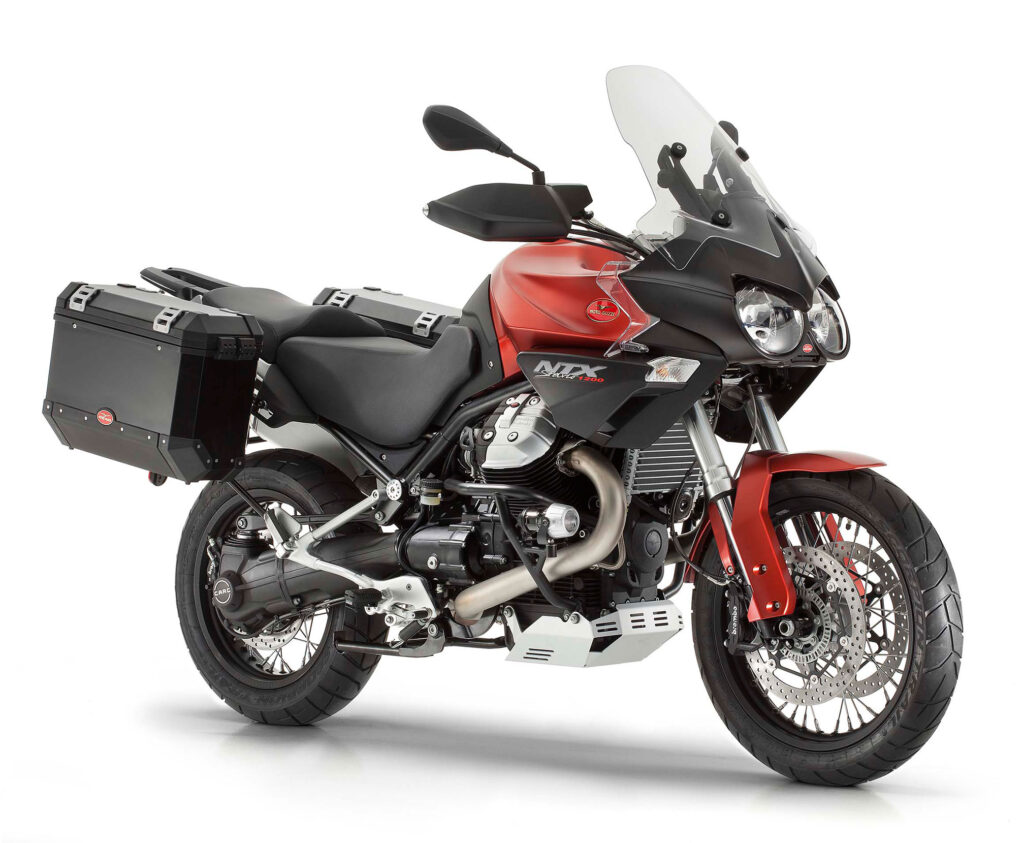

These are the known mechanical and performance specifications for your 2016 Moto Guzzi Stelvio 1200 NTX.
Basic Specs
Year2016
MakeMoto Guzzi
ModelMoto Guzzi Stelvio 1200 NTX
TypeSuper motard
CostUS$ 15990. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1151.00 ccm (70.23 cubic inches)
Type90° V-twin
DetailsV2, four-stroke
Max RPM
Compression
Bore/Stroke95.0 x 81.2 mm (3.7 x 3.2 inches)
Valves/Cylinder4
FuelingInjection. Magneti Marelli IAW5A phased, alfa-n system; two Ø 50mm throttle bodies, Weber IWP 189 injectors, lambda probe.
IgnitionMultipoint sequential electronic ignition
ExhaustStainless steel, 2-in-1 type, three-way catalytic converter with lambda probe.
Lubrication
CoolingOil & air
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchSingle-disc with integrated anti-vibration buffer
DrivelineCompact reactive cardan shaft drive system
Performance
Horespower105.00 HP (76.6 kW)
Torque113.00 Nm (11.5 kgf-m or 83.3 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity32.00 litres (8.45 gallons)
Emissions
Chassis
Frame TypeHigh tensile steel tubular twin cradle
Rake27.0°
Trail125 mm (4.9 inches)
Front SuspensionCompletely adjustable fork (spring preload and hydraulic compression and rebound damping) with 45 mm diam. upside down stanchions and caliper mounting for radial brake calipers.
Front Travel170 mm (6.7 inches)
Rear SuspensionSingle arm with progressive linkage, monoshock with adjustable hydraulic rebound damping and spring preload adjuster knob.
Rear Travel155 mm (6.1 inches)
Seat
Seat Height820 mm (32.3 inches) If adjustable, lowest setting.
Alt. Seat Height840 mm (33.1 inches) If adjustable, highest setting.
Total Height1,480 mm (58.3 inches)
Total Length2,250 mm (88.6 inches)
Total Width1,050 mm (41.3 inches)
Ground Clearance210 mm (8.3 inches)
Wheelbase1,535 mm (60.4 inches)
Dry Weight
Wet Weight272.0 kg (599.7 pounds)
Wheels & Brakes
Front Tire/Tyre110/80-R19
Rear Tire/Tyre150/70-R17
Front BrakesDouble disc. Bremo. Stainless steel wave discs, radial calipers with 4 opposed pistons.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Bremo. Single fixed stainless steel disc, floating caliper with 2 parallel pistons.
Rear Brake Diameter282 mm (11.1 inches)
WheelsLight alloy, spoked.
Comments
Windshield.
